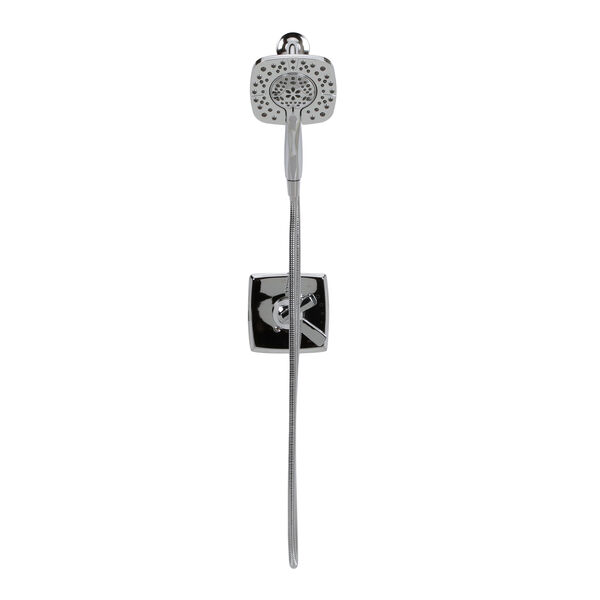

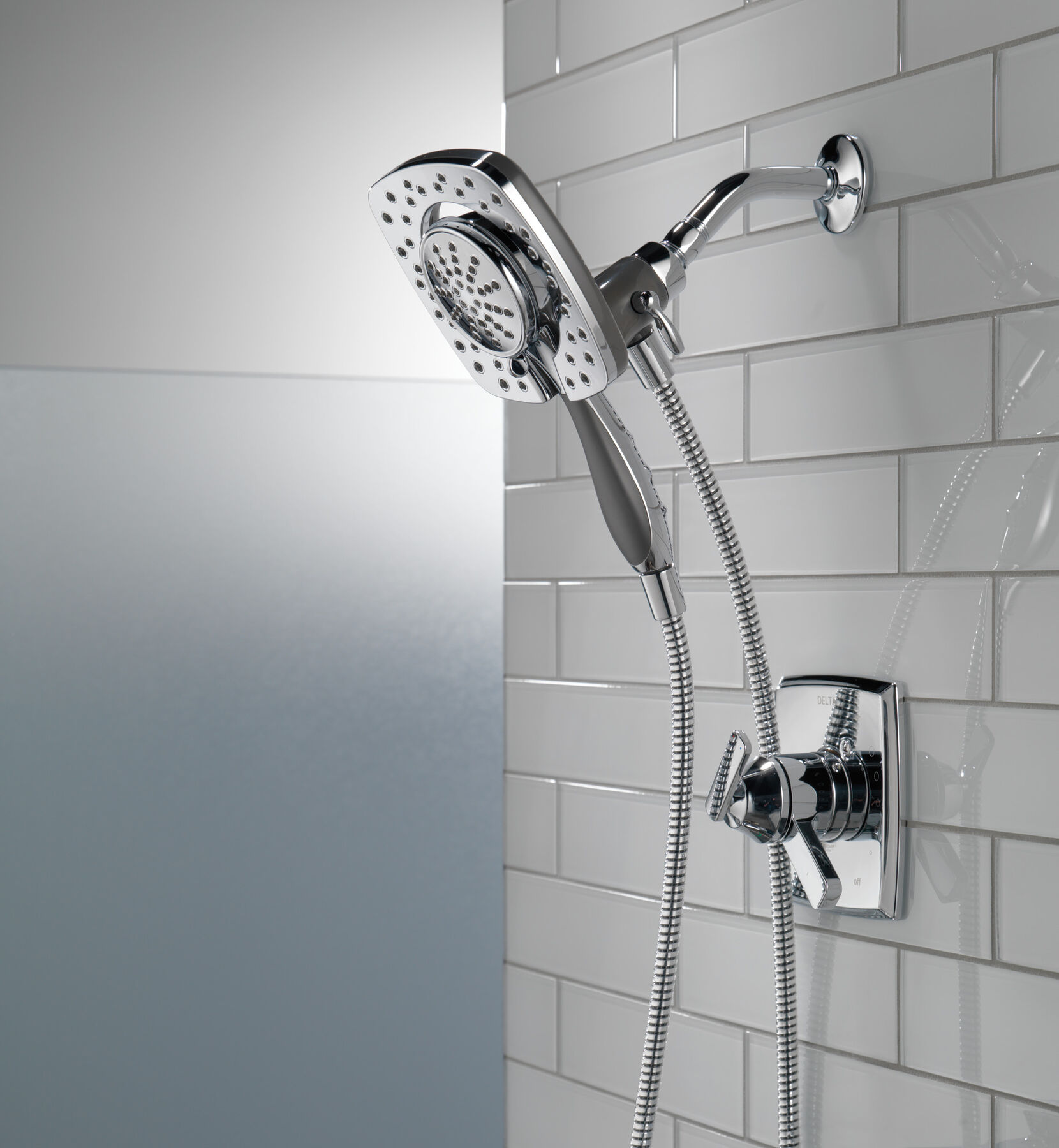

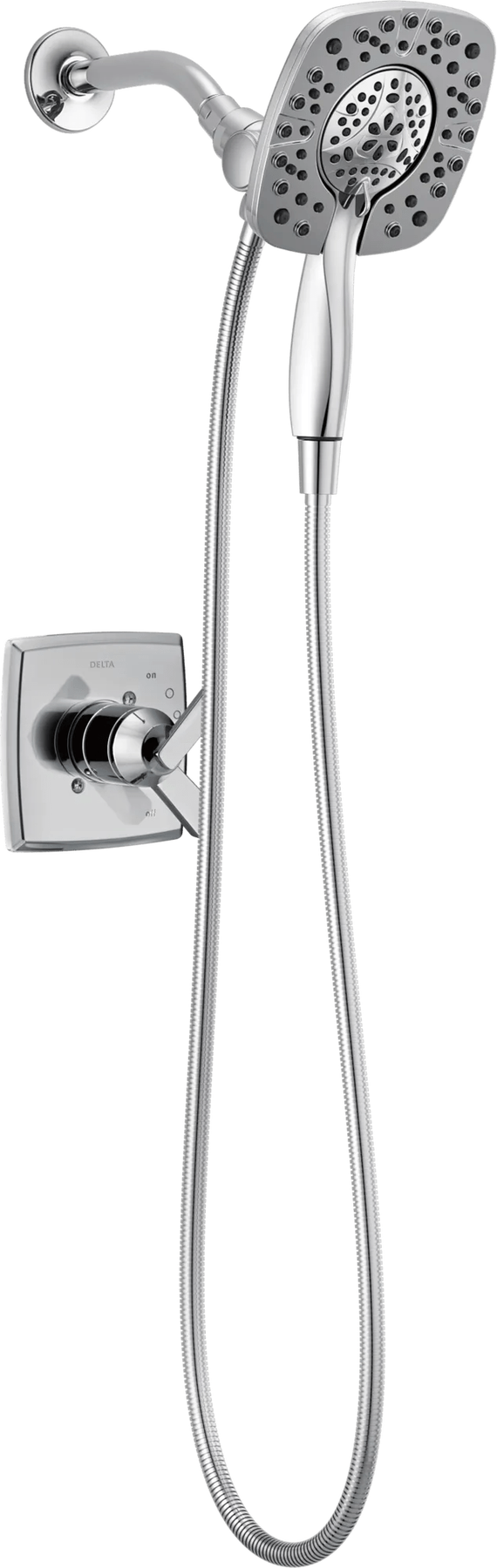

Monitor® 17 Series Shower Trim with In2ition® in Chrome

Model#: T17264-I
Monitor® 17 Series Shower Trim with In2ition® in Chrome
Model#: T17264-I
List Price: $32710
PRODUCT FEATURES

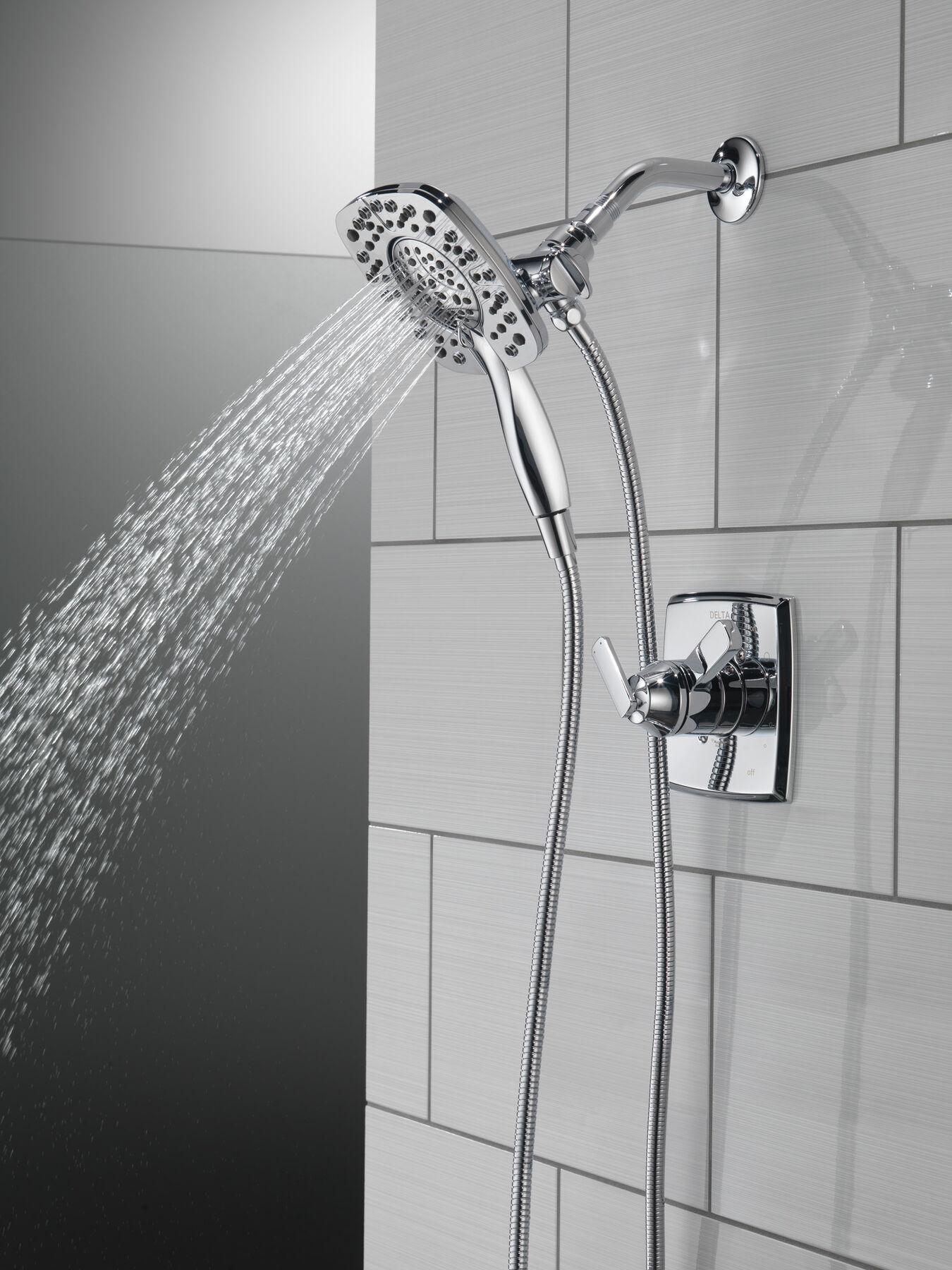

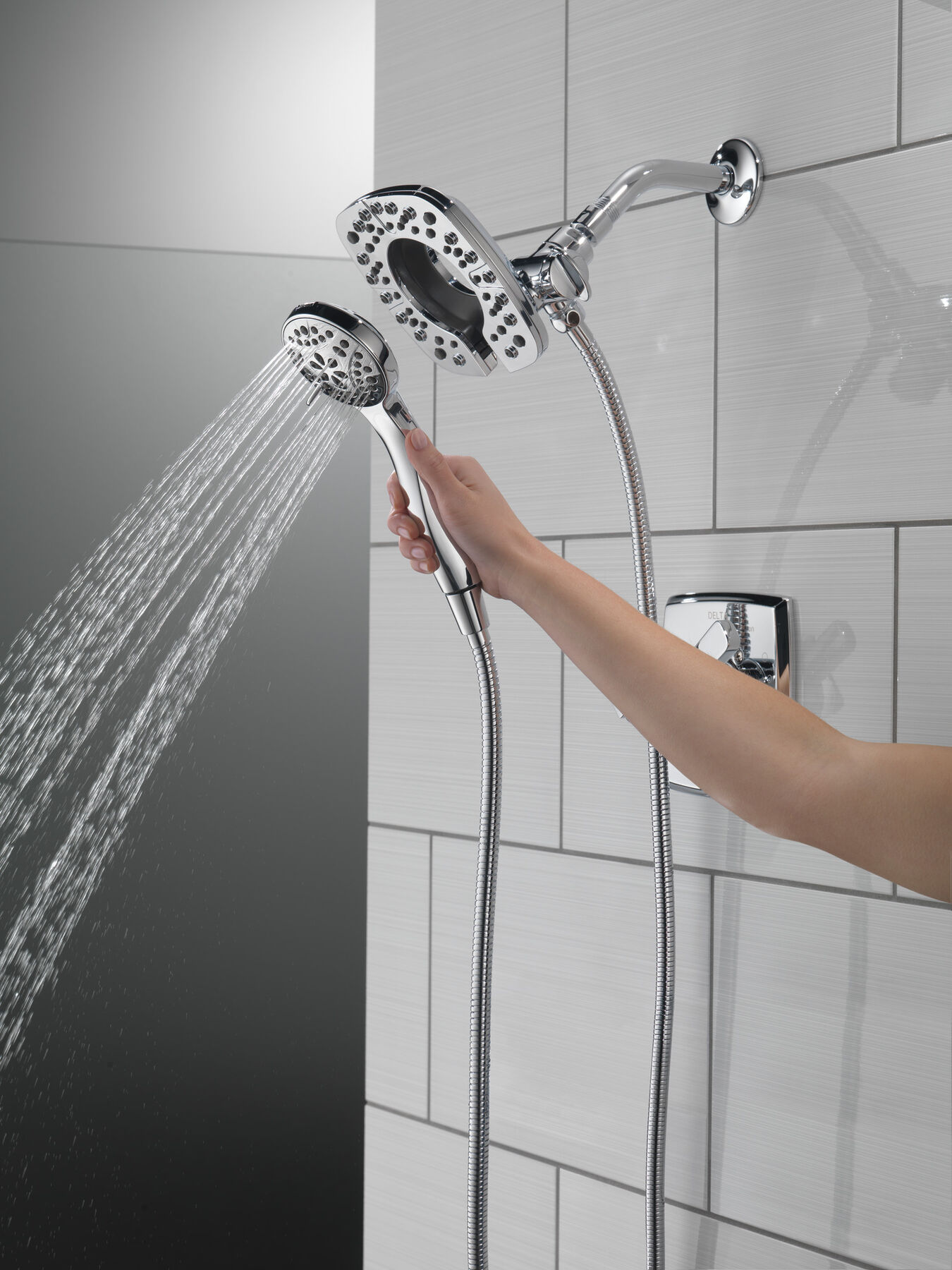

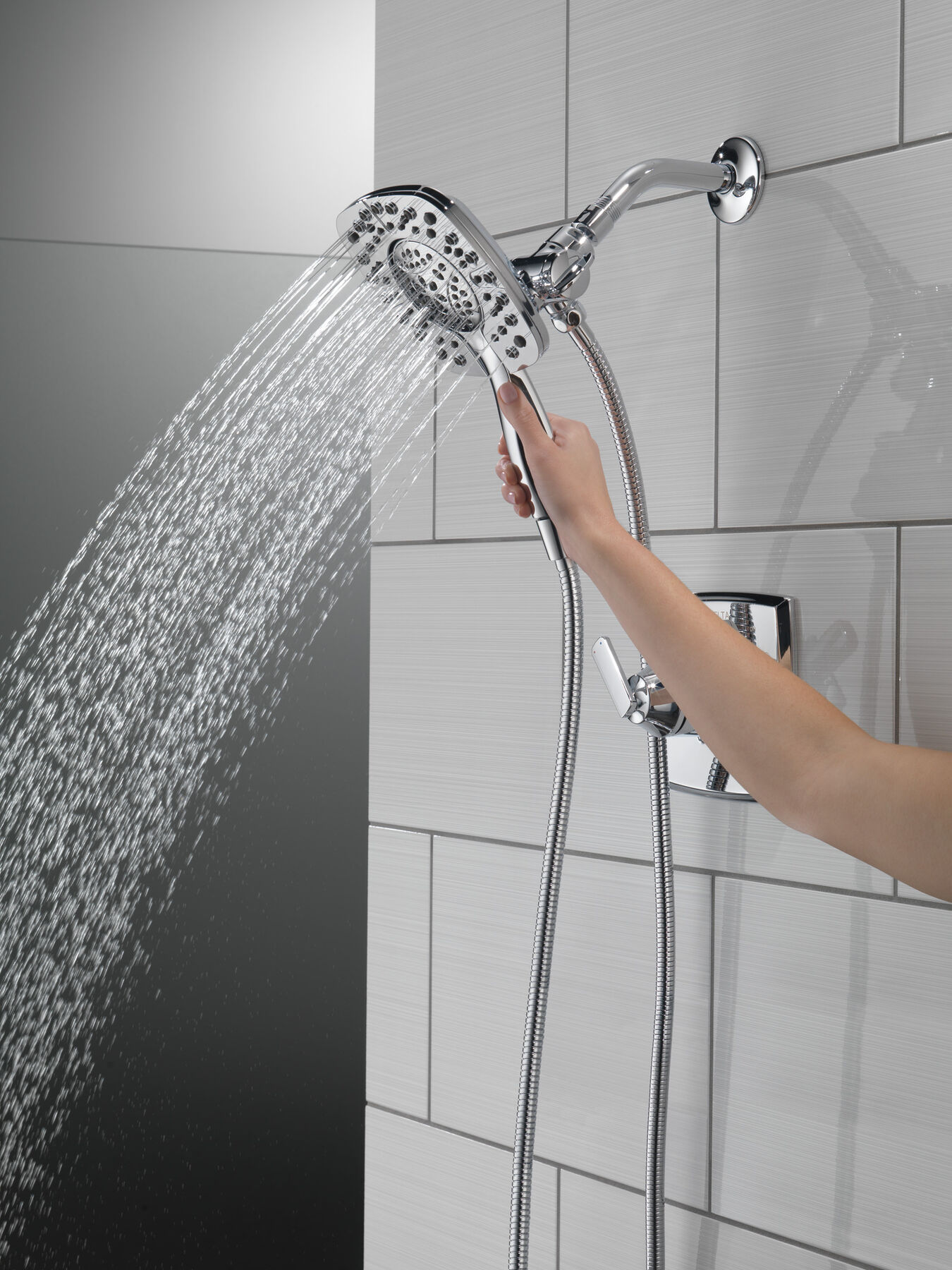

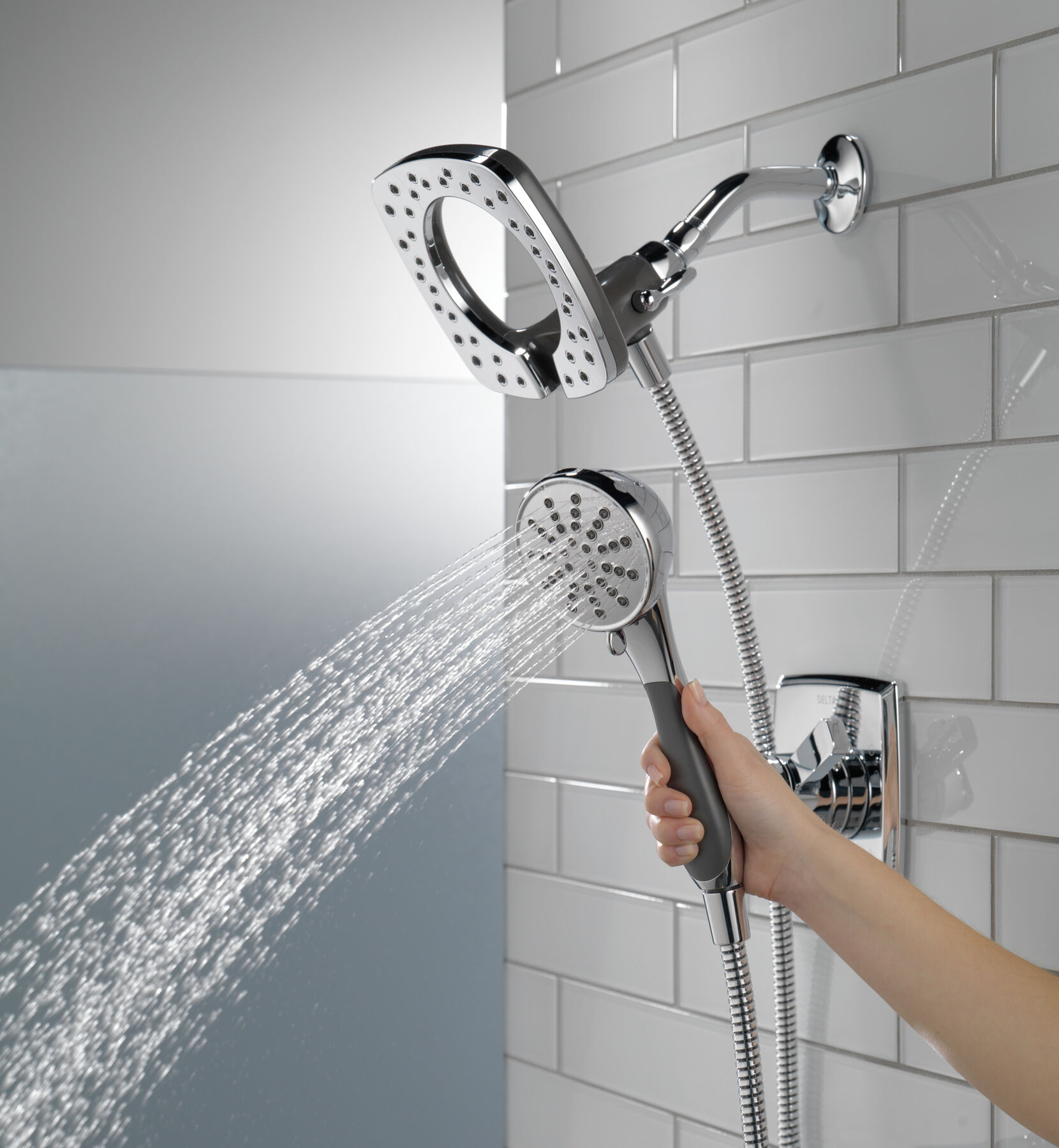

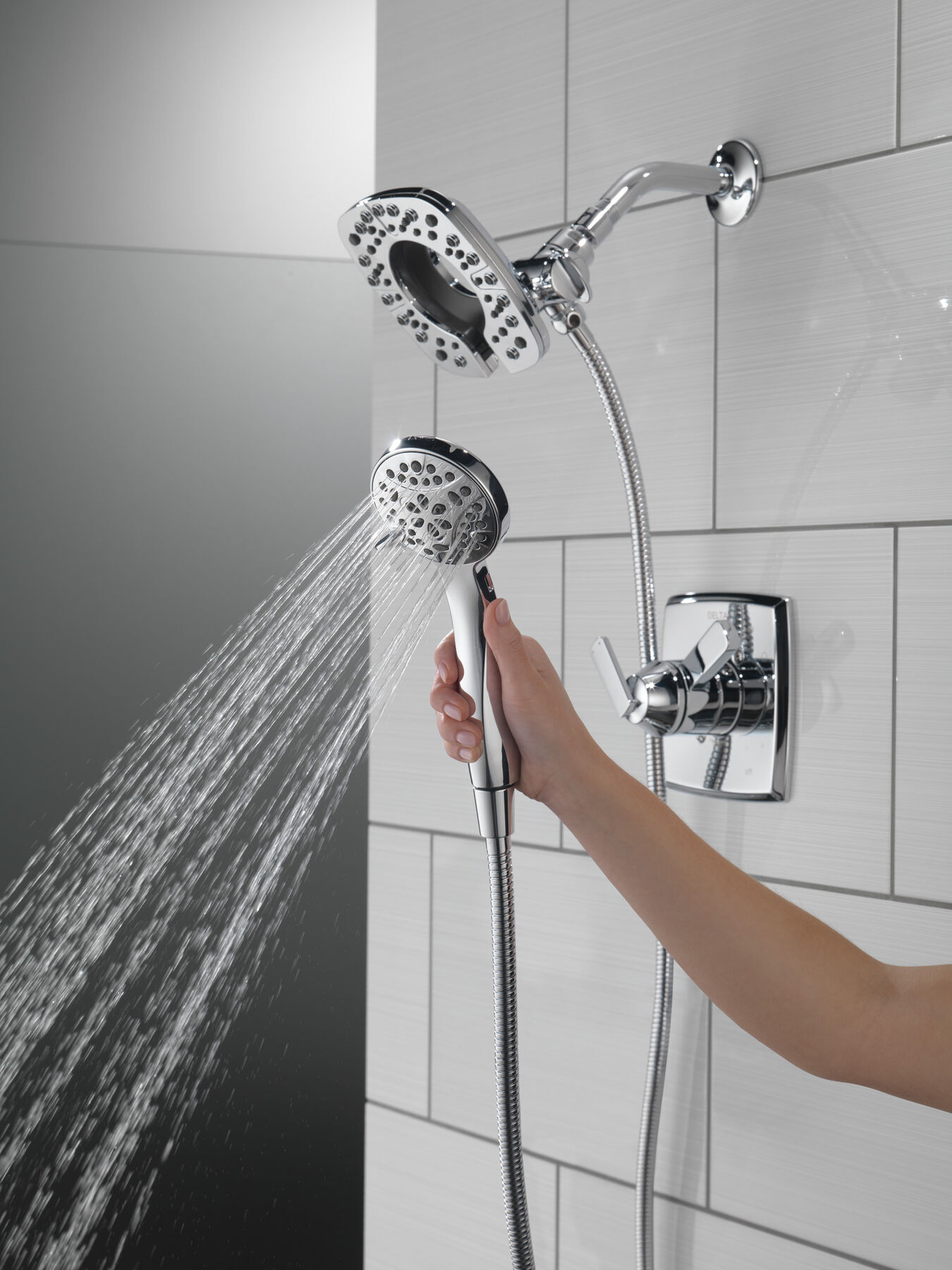

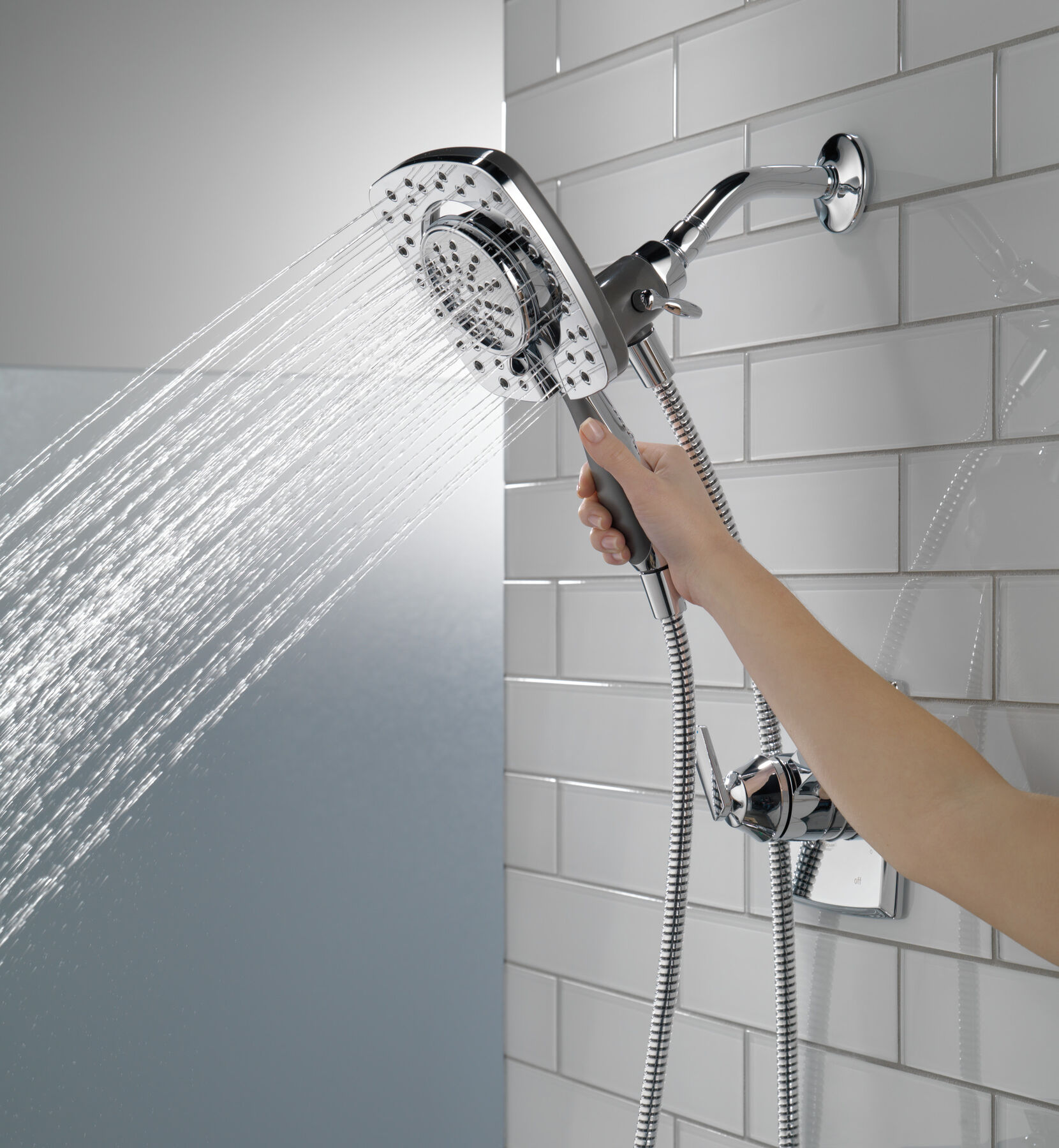

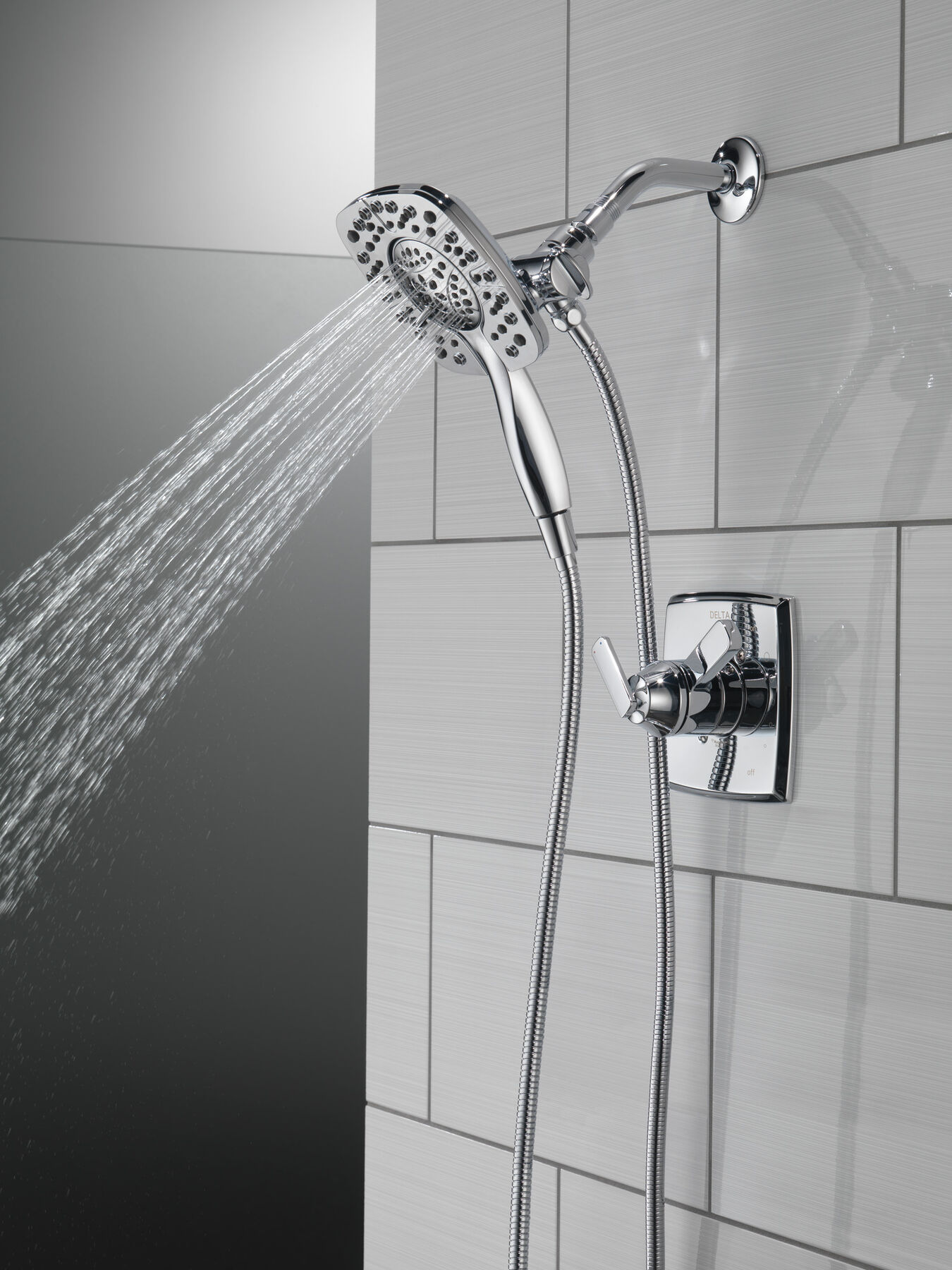

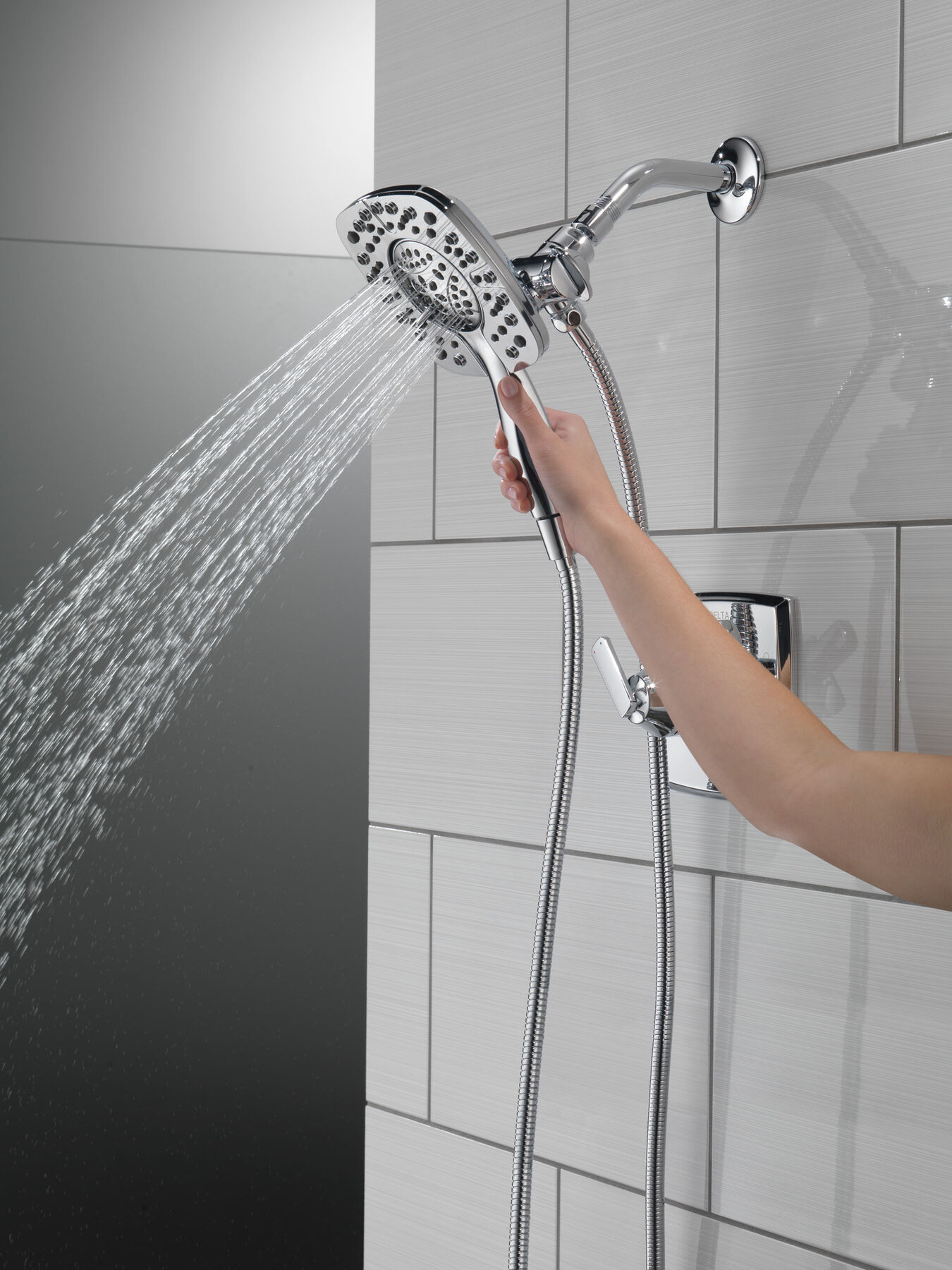

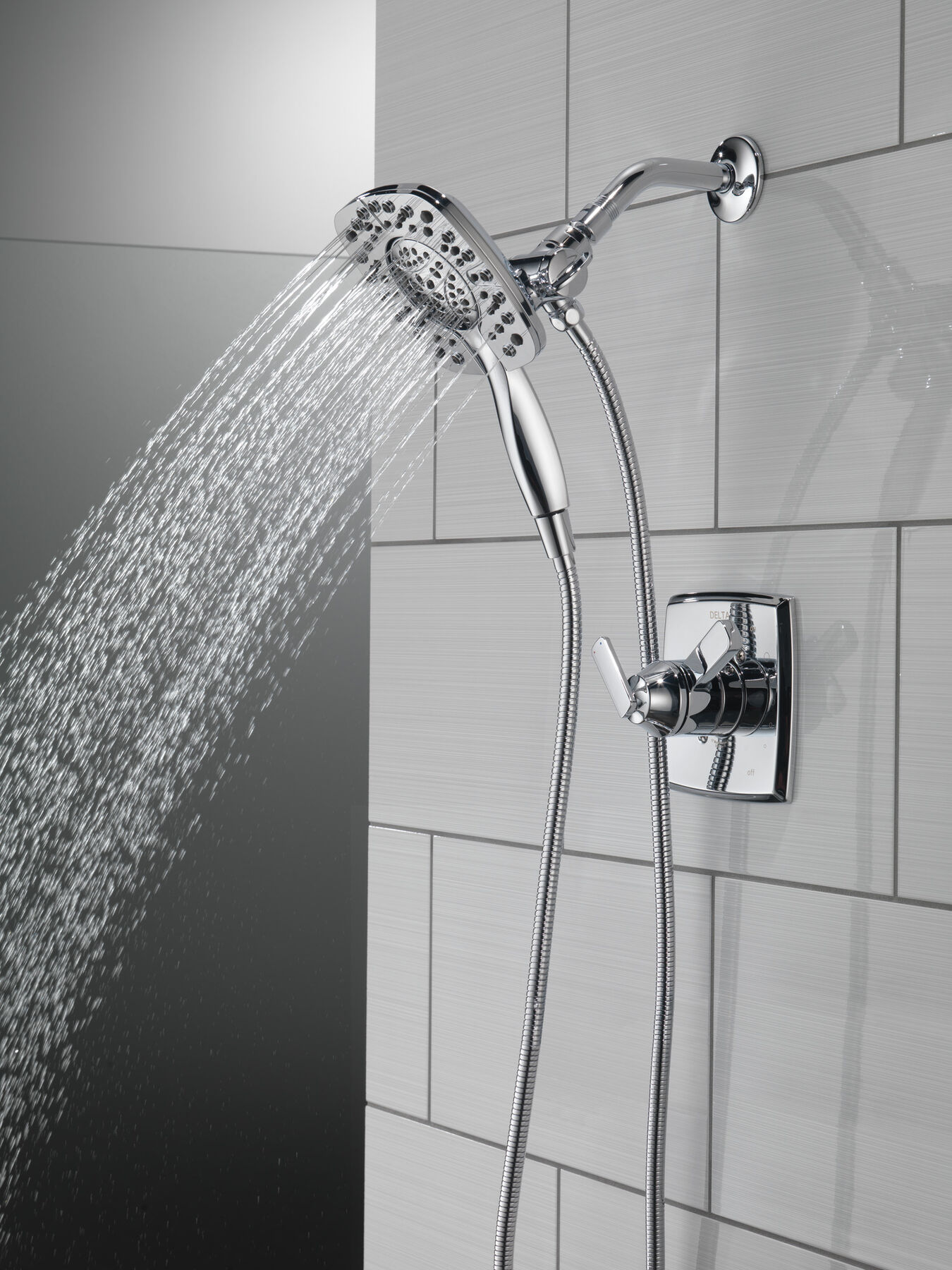

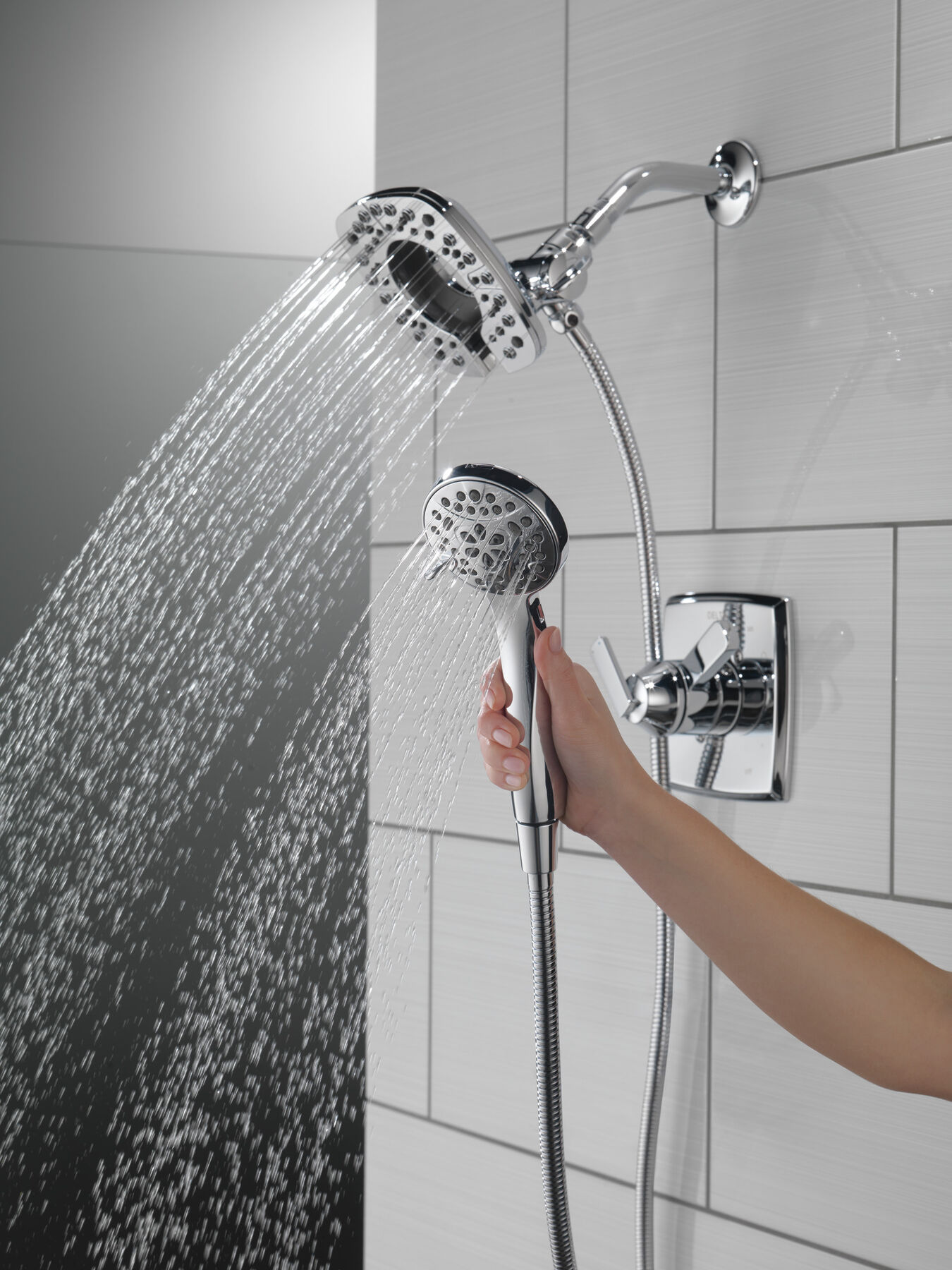

The Delta® In2ition® Two-in-One Shower features a detachable hand shower which can be used separately from or simultaneously with the shower head. This integrated dual-functionality gives you maximum flexibility without sacrificing warmth, as you can choose to have water streaming from the shower head only, the hand shower only or both the shower head and hand shower at once. With separate handles for volume and temperature control, this Delta tub/shower provides a more refined showering experience. Simply set the water at your preferred temperature and turn the shower on or off with the volume control handle - without interrupting your set temperature. While other products may gather unsightly mineral build-up over time, Delta soft rubber Touch-Clean® spray holes allow any mineral residue to simply be wiped away for an instantly refreshed look – with no need for soaking or the aid of chemical cleaners. The pause setting gives you ample space for shaving, lathering and other shower tasks, then easily restarts the water with the temperature where you left off. This spray setting helps you conserve water, so you can worry less about depleting your supply of hot water - and you help the environment too. Delta® pressure-balance valves use Monitor® Technology to protect you and your family from sudden temperature changes. Chrome has rapidly become one of the most popular finishes across décor styles in the bath thanks to its stunning gloss and innate versatility. Paired with crisp lines and bright whites, it creates a bold, modern contrast, but it works equally well with vintage styles and traditional spaces to convey a hint of nostalgia. Delta WaterSense labeled faucets, showers and toilets use at least 20% less water than the industry standard—saving you money without compromising performance.

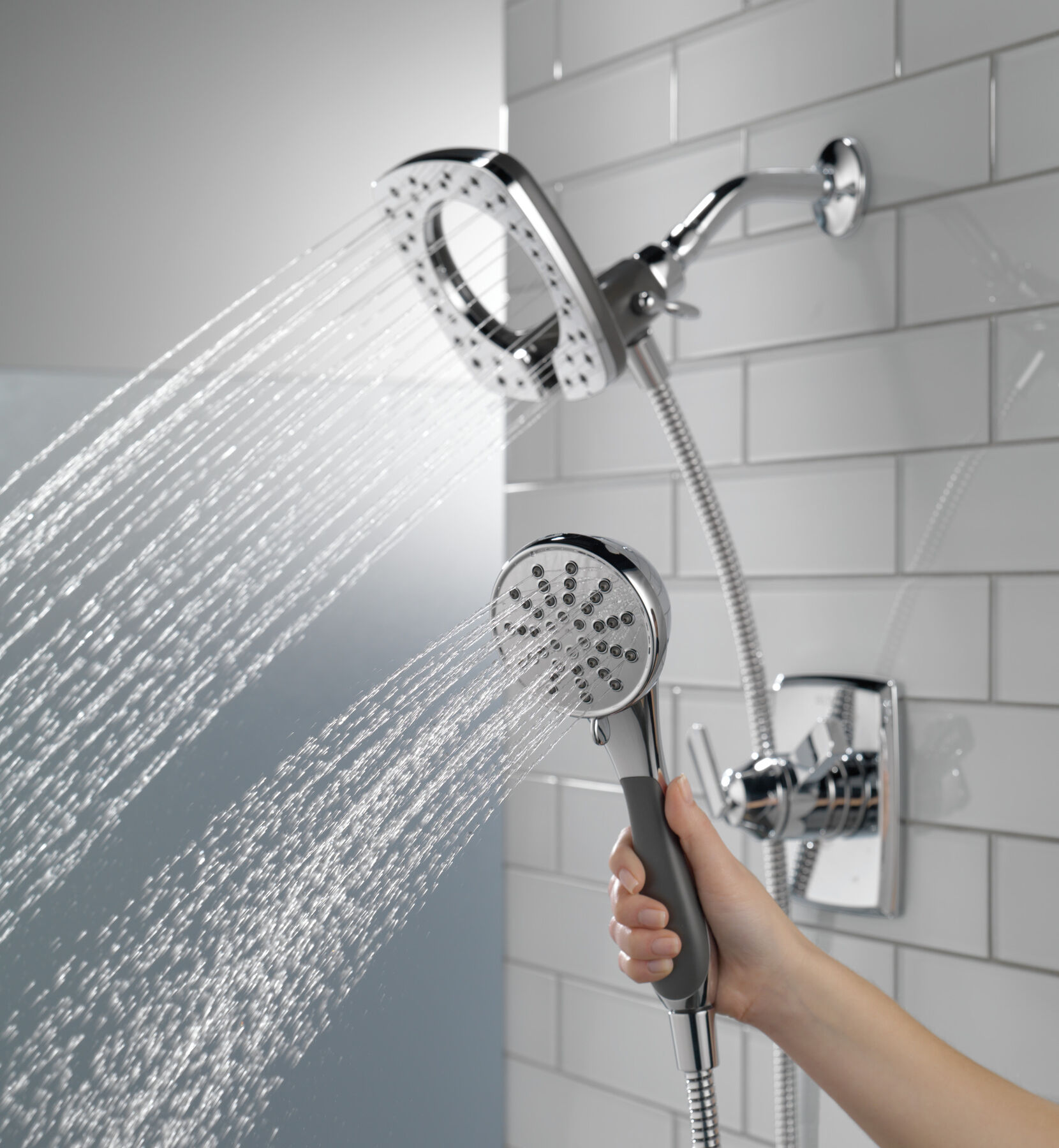

  • The In2ition Two-in-One Shower gets water where you need it most using the integrated shower head and hand shower separately or together
  • Perfect for bathing loved ones and pets as well as keeping the inside of your shower and tub clean
  • Control volume and water temperature independently with two separate handles for more refined control of your shower experience
  • Monitor pressure balance valve keeps water temperature within a safe +/-3degrees F (+/-1.6degrees C), helping to protect you from sudden changes in hot or cold water pressure
  • Spray settings include: Full Body Spray, Massage Spray, Full Body with Massage Spray, and Pause
  • Pause feature reduces water to a trickle, giving you space for shaving, lathering and other shower tasks while maintaining your temperature settings
  • Soft, rubber Touch-Clean® spray holes allow you to easily wipe away calcium and lime build-up from the spray face of your shower head and hand shower with the touch of a finger
  • Trim kit only, must order MultiChoice® Universal Valve separately to complete the unit
  • ADA Compliant
  • WaterSense labeled shower heads use at least 20% less water than the industry standard without compromising performance
Eco-Friendly
WaterSense® Labeled
Documents & Specs
Installation Information

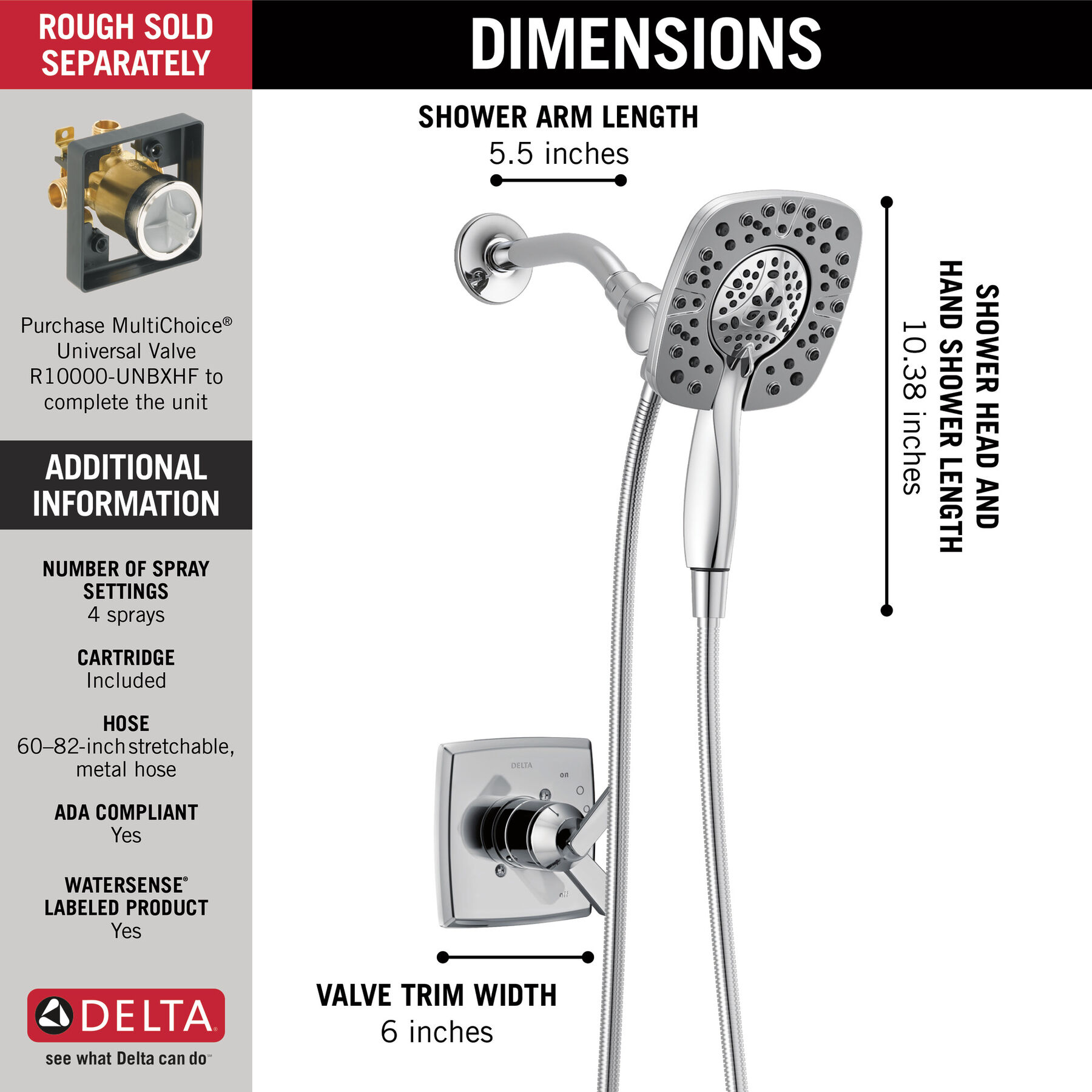

Flow Rate :
1.75 gpm @ 80 psi, 6.6 L/min @ 552 kPa
Overall Height (in.) :
12
Valve Type:
Dual-function pressure balance cartridge

INSTALLATION SUPPORT

Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.

GO
Enter Valid Zip.
Mike and Hanna
Delta logo thumb

Need help with installation? Mike & Hannah are here to help! Get advice from the pros on everything from installation to product care.

PART LIST

PART LIST

Image-Master-RP196

Delta®

Delta® Screws (2) - Escutcheon Trim

List Price: $9.30 - $18.25
Free Ground Shipping All Orders $49+

RP196

Image-Master-RP6025PR

Delta®

Delta® Flange - Shower

List Price: $21.30 - $35.40
Free Ground Shipping All Orders $49+

RP6025PR

Image-Master-RP6023PR

Dryden®

Dryden® Shower Arm

List Price: $40.25 - $101.00
Free Ground Shipping All Orders $49+

RP6023PR

Image-RP46463 Secondary Image-RP46463

Delta®

Delta® Cartridge Assembly - MultiChoice® Universal - 17 Series

List Price: $141.95
Online Price: $113.56
Free Ground Shipping All Orders $49+

RP46463

3.64 42
Image-RP23336

Delta®

Delta® O-Ring - Large - All Monitor® Series

List Price: $7.10
Online Price: $5.68
Free Ground Shipping All Orders $49+

RP23336

5.00 5
Image-Master-RP77162

Ashlyn®

Ashlyn® Escutcheon - 17 Series

List Price: $80.95 - $119.05
Free Ground Shipping All Orders $49+

RP77162

Image-RP32105

Delta®

Delta® Screw - Handle - Monitor® 17 Series

List Price: $10.65
Online Price: $8.52
Free Ground Shipping All Orders $49+

RP32105

1.00 1
Image-Master-RP77163

Ashlyn®

Ashlyn® Metal Lever Handle Set - Bathroom

List Price: $77.80 - $116.55
Free Ground Shipping All Orders $49+

RP77163

Image-Master-RP77164

Ashlyn®

Ashlyn® Temperature Knob & Cover - 17 Series

List Price: $33.80 - $50.45
Free Ground Shipping All Orders $49+

RP77164

Image-Master-RP50880PCPR

Delta®

Delta® Trim Sleeve - 17 & 18 Series

List Price: $25.10 - $48.65
Free Ground Shipping All Orders $49+

RP50880PCPR

Image-RP46073

Delta®

Delta® Cartridge Adapter - MultiChoice® 17 Series

List Price: $22.95
Online Price: $18.36
Free Ground Shipping All Orders $49+

RP46073

3.89 9
Image-Master-RP77092

Ashlyn®

Ashlyn® Tub Spout - Non-Diverter

List Price: $126.85 - $187.35
Free Ground Shipping All Orders $49+

RP77092

Image-RP12630

Delta®

Delta® Screws (2) - Extra Long - Escutcheon Trim

List Price: $17.00
Online Price: $13.60
Free Ground Shipping All Orders $49+

RP12630

4.00 10
Image-RP32102

Delta®

Delta® Rotational Limit Stop - 17 Series

List Price: $7.10
Online Price: $5.68
Free Ground Shipping All Orders $49+

RP32102

4.00 2
REVIEWS
Rated 5 out of 5 by from Needs more pressure but still nice! I love the color and look of this shower head. The hose is flexible and makes use of the handheld so easy compared to others I have had in the past. The water pressure is a little low for my liking however we weren’t able to install the part that says water pressure on it due to the way our bath is set up. We will need a professional to come in and do this so the pressure may be due to that. There are several settings to change the type of flow, and the handle is lightweight. I’ve had no issues going between settings and I’ve had no issues with leaking so far. Easy to wipe clean as well. Pretty great shower head, can’t wait to see what it’s like with a little more pressure!
Date published: 2025-11-21
Rated 5 out of 5 by from Beautiful sleek shower head 2 in 1 Design: I absolutely love the design of this shower system. The modern lines mixed with the warm Champagne Bronze finish give my bathroom such an elegant upgrade. The two-in-one shower feature is genius — it looks sleek, not bulky, and feels like a high-end spa setup. Assembly: Installation went smoother than I expected. Once everything was in place, the trim and shower head fit beautifully together. All of the components clicked into place securely, and the instructions were clear enough to follow without any frustration. Durability: The overall build feels solid and dependable. The hand shower detaches smoothly, the hose is sturdy, and the handle turns with a quality feel. I’ve been using it daily, and everything still feels brand new — no leaks, no wobbling, no finish fading. Comfort: The comfort of this system is AMAZING. The water flow is consistent, and the different spray modes make every shower relaxing. Being able to switch between the fixed head and the handheld (or use both at the same time!) is a huge bonus, especially when rinsing off or cleaning the shower. Appearance: The Champagne Bronze finish is truly the star — it’s warm, rich, and absolutely beautiful in person. It stands out in the best way and instantly elevated the entire bathroom. Every time I walk in, it catches my eye in the prettiest way.
Date published: 2025-11-21
Rated 5 out of 5 by from Great water pressure! This shower system is so pretty and very functional. The water pressure is great. The installation was pretty straight forward. It is easy to keep clean amd looking good. The hand shower part has been very durable for us. Overall, its been a great experience. We did have to get used to placing the handheld part into the shower head. You have to push it in, but it stays, so I'm pretty happy with that. We had high expectations for this brand, and I have not been disappointed.
Date published: 2025-10-29
Rated 5 out of 5 by from Amazing color and product! This set is stunning. The color is better than I thought it would be! It is heavy, so the qualities seems great. While we are not ready to install yet, our contractor says delta is super easy to install and will last a long time! I cannot wait to get this installed and design the rest of the hardware around it.
Date published: 2025-10-22
Rated 5 out of 5 by from Gorgeous! The champagne bronze is beautiful and will instantly elevate the look of your shower. We had another Delta shower faucet previously installed, so the upgrade was a pretty straightforward process. We just had to remove the old knob, bonnet ring, and cartridge and replace them with the new. If you previously had separate rotation knobs for water temperature and water on/off you may not even have to go that far. If you are moving over from another brand, make sure to order the Delta universal kit for your water lines. Installation took me a couple hours from start to finish and we were showering that very same day. The 2-in-1 shower head is going to be awesome for rinsing the shower walls after scrubbing - so long days of splashing refilling cups of water to rinse the walls. I will update my review after we’ve used the Delta Ashlyn Monitor 17 Series for a couple of months to give a fuller account of how it performs.
Date published: 2025-10-15
Rated 5 out of 5 by from Beautiful This delta shower head is absolutely beautiful in champagne bronze. The finish is perfect and I love how there are dual controls for temperature
Date published: 2025-10-13
Rated 5 out of 5 by from Showering like a rich man! This shower head and 2 in 1 bathroom system from Delta Faucet looks top dollar and really shines! It is very durable and installation was so easy a caveman could do it!
Date published: 2025-10-10
Rated 5 out of 5 by from Love this shower set! Loooovvveeeeee this shower head and dial! The Champagne Bronze is so pretty and elegant. It was easy to install, we had to remove our old set and installed this one. Instructions are super helpful as well. Easy to do!
Date published: 2025-10-09
  • y_2025, m_11, d_23, h_8
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.42
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_154
  • loc_en_US, sid_T17264-I, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 9ms
  • reviews, product
Q&A

Can l an Ashlyn Monitor 17 Series T17264 be installed in a R10000-UNWSHF valve? i.e. High Flow Valve?

Asked by: Nate
Thank you for your question, Nate! Yes, you can use the R10000-UNWSHF valve body, with the T17264-I valve trim. Because the bottom port is pre-plugged on the R10000-UNWSHF valve body, you will not be able to use a tub spout. Best Regards, Benjamin
Answered by: Delta Faucet
Date published: 2024-03-28

what is the diameter of the shower head?

Asked by: Pat
Hi Pat, Thank you for your question! The shower head is 6 9/16" wide. The spray face of the hand shower is 3 5/8" in diameter. Technical specifications for 58064: http://www.deltafaucet.com/customersupport/documentation/58064.html?document=ts&fromDetailArea=bath&documentIndex=0#flashWrapper Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2024-03-28

Do your shower valves contain rubber grommets or washers? I'm looking for a washerless valve.

Asked by: Murray
Hi, Murray! Thank you for your question. The Delta Monitor T17264-I shower trim kit does include an adapter assembly kit that contains seats, springs, and quad seals for the operation of the unit. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2024-03-28

Can I just add a metal tub spout to this set?

I have seen there is an Ashlyn set that comes with a tub spout but see that it is not metal. I would like to add a metal spout to this set. Is that possible?
Asked by: hsl
Hi hsl, Thank you for your question. You can add a diverter tub spout to this trim. Tub Spout selection: http://www.deltafaucet.com/bath/showering-components/filter-results.html?finish=cr&sort=pricehighlow&type=type-showercomp-tubspouts&function=bath-showering-components Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2024-03-28

Shower Valve Rough-In

Will the shower valve that is included with the B112900 Foundations single handed shower accommodate and work with the Ashlyn monitor 17 series shower trim with in2ition two in one shower?
Asked by: Corey
Hello Corey, Thank you for your question. The Ashlyn monitor shower trim is not compatible with model B112900. However, the In2ition shower head itself is compatible. Best Regards, Courtney
Answered by: DeltaFaucet12
Date published: 2016-11-21

Different Hose sizes?

This model comes with a 60" hose. Is it possible to order a shorter hose length. Say appox. 30" long
Asked by: Joe
Hi Joe, Thank you for your question. We offer 3 40" handshower hoses that will work with the In2ition showerhead that comes with the T17264-I. The models are U495D-40-PK, U494R-WH40-PK, and U490R-40-PK. Thanks, Dave
Answered by: DeltaFaucet2
Date published: 2024-03-28

If I'm only going to have one showerhead with the ashlyn 17 or 14 series would the R 100000 UNBXHF be a better choice than the R 100000 UHBX ?

Asked by: fran
Hi, fran! Thank you for your question. The Delta T17264-I Ashlyn faucet would work best with the Delta MultiChoice R10000-UNBXHF as this rough valve is high flow for shower-only units. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2024-03-28

Hose replacement

Can the hose be changed out/replaced with a better quality hose? It is very rigid and cheap looking.
Asked by: Bon
Hi, Thank you for your question on the Delta T17264-RB-I. The Delta shower faucet includes the RP64021 flex hose. You can order the U495D-RB60-PK stretchable metal hose assembly. Best regards, Brandis
Answered by: DeltaFaucet7
Date published: 2024-03-28
