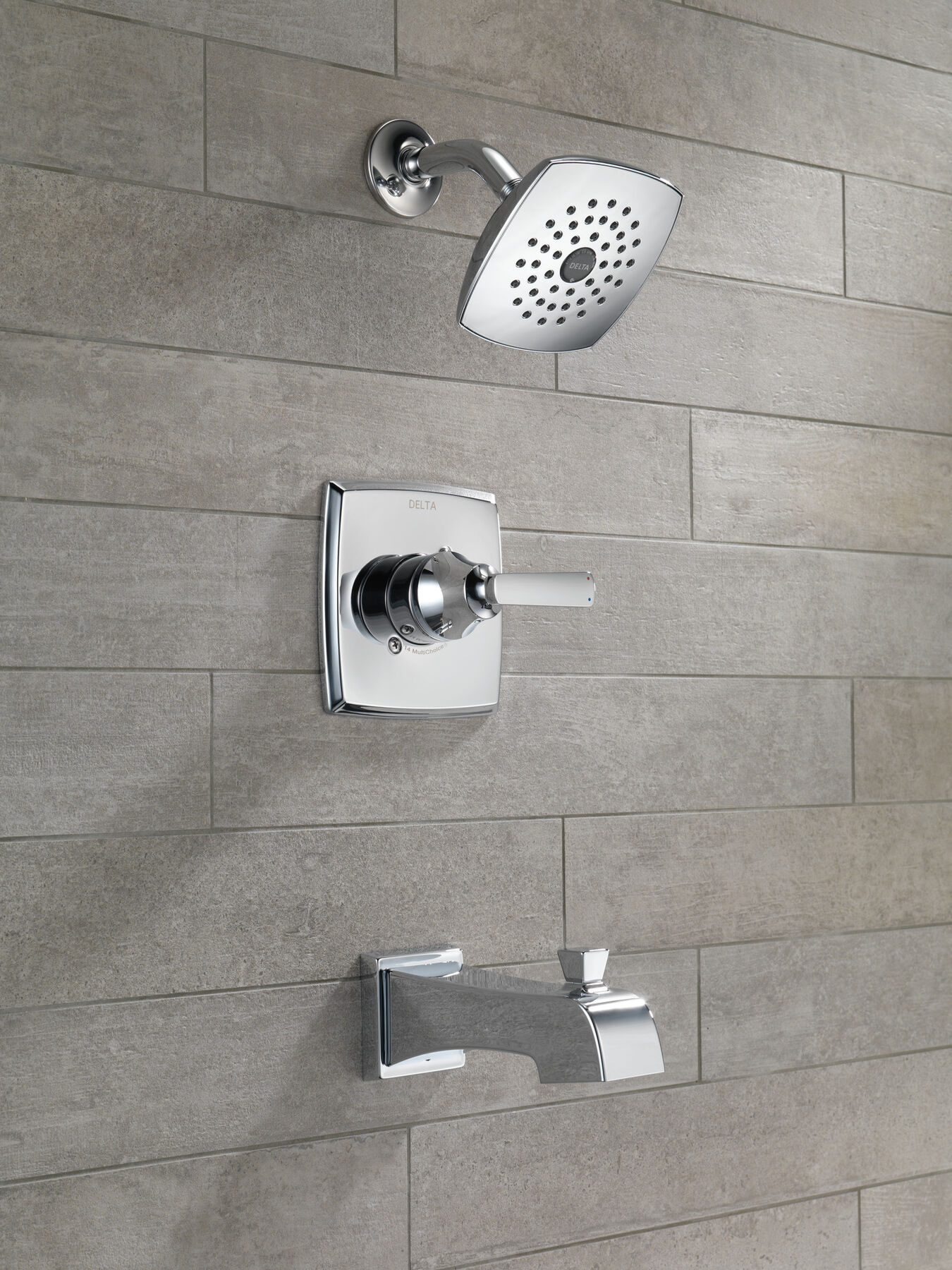

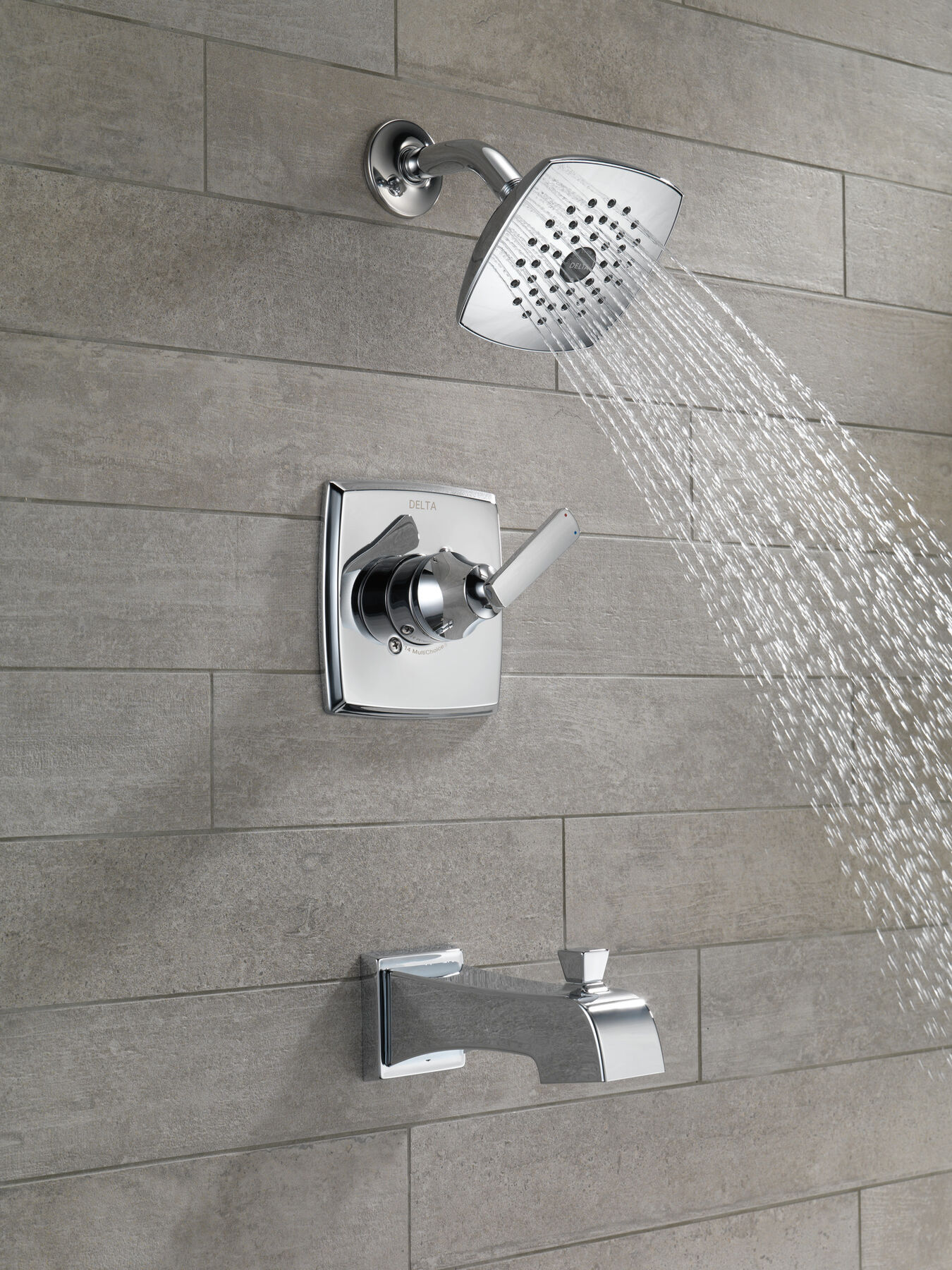

Monitor® 14 Series Tub & Shower Trim in Chrome
Model#:
T14464
PRODUCT FEATURES
WaterSense certification promotes water conservation
- Monitor pressure balance valve keeps water temperature within a safe ± 3.6⁰ F (± 2.0⁰ C), helping to protect you from sudden changes in hot or cold water pressure

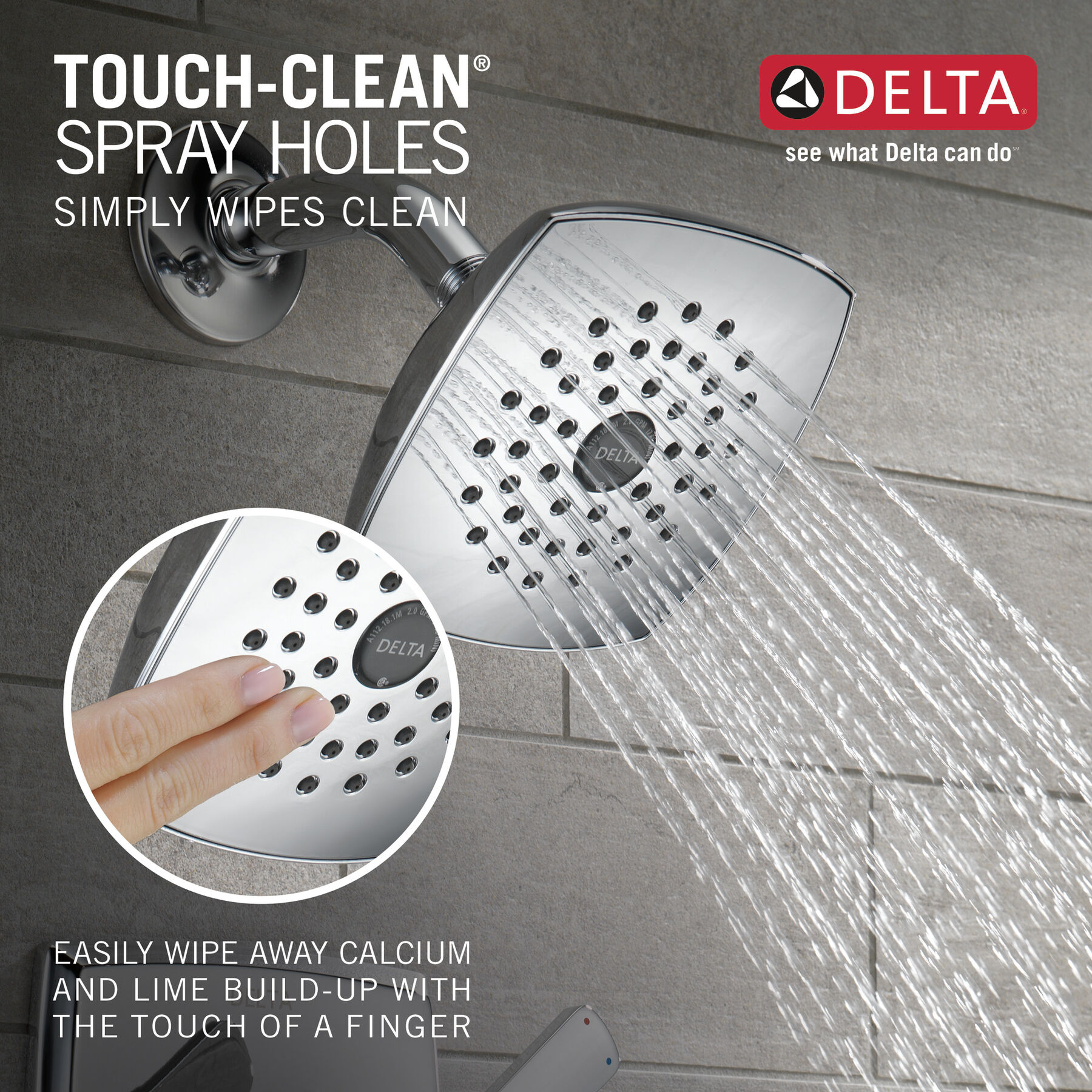

- Soft, rubber spray holes allow you to easily wipe away calcium and lime build-up from the spray face of your showerhead and handshower with the touch of a finger
- Trim kit only, must order MultiChoice Universal rough-in separately to complete the unit
- Single function operation
- Single lever handle for ease of temperature control
- Meets standards set by Americans with Disabilities Act (ADA)
- Spray settings include: Full Body
Special Information
California Prop 65 WARNING
CALIFORNIA PROP 65 WARNING
This product can expose you to Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm.
For more information go to http://www.P65Warnings.ca.gov
Eco-Friendly
WaterSense® Labeled
Technology and Special Features
ADA Compliant
ADA Compliant
Some people, and some local codes, require fixtures that are compliant with the Americans with Disabilities Act. If someone may visit who has special needs, or if you believe future buyers might appreciate this feature, Delta offers a range of compliant fixtures.
MultiChoice® Universal Valve
MultiChoice® Universal Valve
The MultiChoice® Universal Valve allows you install one rough in the wall and then choose from three different shower functions as well as various styles.
Water-Efficient
Water-Efficient
CalgreenCert Tooltip information here...
Monitor®
Monitor®
Delta Monitor® faucets feature pressure balance valves, which protect against sudden temperature or pressure changes to keep the water in the shower within a safe ±3.6° F.
Documents & Specs
Product Support, Repair Parts & Technical Specifications
Resources
Installation Information
Connection Type :
1/2" IPS
Flow Rate :
1.75 gpm @ 80 psi, 6.6 L/min @ 552 kPa
Overall Height (in.) :
12
Valve Type:
Single-function pressure balance cartridge
INSTALLATION SUPPORT
Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.
Need help with installation? Mike & Hannah are here to help! Get advice from the pros on everything from installation to product care.
REVIEWS
Rated 4 out of
5
by
Greg from
Shower Hardware
The product works great but in less than a month the shower head looks tarnished from only two showers
Date published: 2025-09-23
Rated 3 out of
5
by
Chelsea from
Aesthetically pleasing but plastic.
While we like the look of the fixture, we were very surprised that the material was plastic, especially considering the cost, so concerned about how well this will hold up.
Date published: 2025-02-08
Rated 3 out of
5
by
Michele B from
Good product but disappointing size
The mixer and the tub spout look great. However, the shower head looks minuscule in comparison. I ended up getting a larger shower head to balance the set.
Date published: 2023-08-18
Rated 5 out of
5
by
Anonymous from
Delta Shower
Great product and great service
Date published: 2023-03-03
Rated 1 out of
5
by
RDL from
I installed this in my bathroom and in less than a year, all of the finish corroded to an astounding degree. I used no harsh cleaners. I have never seen anything like this. I contacted Delta, sent photos, and they told me to use a water stain remover to no avail. These aren't stains. This is the finish coming off the fixture. I am now having to purchase a new set for the shower and sink and pay a plumber to do the work again. I understand this is an inexpensive product but, a $30 shower head would last longer than this. Terrible product and no viable support from Delta.
Date published: 2022-12-30
Rated 5 out of
5
by
salevie from
Nice upgrade and update
This is beautiful. An easy upgrade for our guest shower. Love the remarkable change in appearance for the great price!
Date published: 2022-12-02
Rated 5 out of
5
by
Mo from
Thank you
Thank you it is very beautiful and I am happy!
Date published: 2022-10-08
Rated 5 out of
5
by
Paramount Construction from
Awesome
Can’t beat the price for this quality
Date published: 2022-05-29
Q&A
I can't seems to find the control to activate the shower from the spout. My old one, I have to pull something under the spout to activate the shower
Hi Ed,
Thank you for your question! To divert water to the shower head, lift the knob on the top of the spout while the water is running.
Best regards,
Jon
Date published: 2017-06-19
WHATS THE CARTRIDGE FOR A T14464
Hi, Gilbert!
Thank you for your question. The valve cartridge assembly for the Delta Monitor T14464 tub and shower trim kit uses RP46074. Here is a link to the part:
https://www.deltafaucet.com/parts-product-detail?modelNumber=RP46074
Best Regards,
Rosanna
Date published: 2024-03-28
We are trying to replace a Delta shower/tub faucet from the early 90's. Is this compatible with the plumbing, valve? already installed? Thank you.
Hello Heidi74,
Thank you for your inquiry! As long as the screw holes on your original 13/1400 series large round escutcheon plate are at the 1 and 7 o'clock positions and you do not have a push button shower diverter directly below the off and on handle, then the Delta Ashlyn Tub and Shower T14464 and any of our other trim kits that start with a T13 or a T14 will interchange for you. The cartridges that come with the new trim kits will not fit your valve body, so you will need to reuse your existing cartridge (RP19804, Blue/White).
Best regards,
Tanya
Date published: 2024-03-28
Is there an extension kit for this trim?
Hello Mac1,
Thank you for your question. Stem extension kit RP77991 can be ordered to allow for an additional 1 3/4" wall thickness. This kit ships with chrome escutcheon screws.
https://www.deltafaucet.com/bathroom/product/RP77991
Best regards,
Tanya
Date published: 2024-03-28
My customer purchased the T14464 trim with the R10000unbx valve. We shipped the valve for the rough in and the plumber is saying he needs the cartridge to finish rough in installation. . Does this not come with the valve?
Hi, Sara610!
Thank you for your question. The valve cartridge assembly comes with the T14464 trim kit, not the R10000-UNBX valve body.
Best Regards,
Rosanna
Date published: 2024-03-28
Is the Diverter on this model supposed to be tight or does it swivel around
Delta T14464-RB Venetian Bronze Ashlyn Monitor 14 Series Single Function Pressure Balanced Tub and Shower Trim Package with Touch Clean Shower Head - Less Rough-In Valve
Thank you for your question, Slim. It is normal for the diverter to swivel.
Best regards,
Jon
Date published: 2024-03-28
On the inside of the tub spout there is a plastic square which slows the water flow. Can the plastic square be removed so there is more water volume coming out.
Thank you for your question, clifdive! The part you are referring to is part of the diverter which helps direct the flow of water and prevents splashing. Removing this part will damage the tub spout and will not increase the flow rate. If you have questions or need further assistance, please contact us directly.
Best regards, Edward
Date published: 2024-03-28
what parts of the Ashlyn Tub and shower trim are plastic and which are metal
Hi Consumer, Thank you for your question. The shower head and tub spout are not metal. The remainder of the trim on the model T14464-RB is metal.
Thanks,
Dave
Date published: 2024-03-28
