SimpleSteam™ Kit
SimpleSteam™ Kit - 15kW in Lumicoat® Chrome
Model#:
5P-EST15-PR
Image Thumbnail, click to view zoomed product image
null
null
null
null
null
null
null
null
PRODUCT FEATURES
Simple to order and simple to use, the SimpleSteam™ Kit is simple for a reason: so you can enjoy the benefits of at-home steam whenever you want it. Steam can be more than a relaxing escape. Discover how the Delta® Steam Systems can improve your overall wellbeing. Plus, conserve water and energy without compromising your experience—an average 20-minute steam shower uses less than one gallon of water. Enjoy your steam with peace of mind; the SimpleSteam generator is covered by our Lifetime Limited Warranty, and our electronic parts are covered for up to two years.
- Kit includes the SimpleSteam™ Generator, SimpleSteam™ Square Control and Square Steam Head
- Generator available in sizes: 4, 6, 7.5, 10, 12 & 15 kW
- Compact design permits generator installation in a vanity, closet, or insulated attic or basement
- Includes 35' cable (alternative length extension cable sold separately)
- Recommended generator pan and auto drain 5GA-PAD-240 available for purchase separately
- Stainless steel tank
- Generator is UL Listed with Limited Lifetime Warranty
- Control turns system off and on and adjusts temperature
- Control must be installed inside the shower area
- Steam Head 3/4" NPT, includes silicone cover
- Essential oil reserve on top of steam head
- Lumicoat® Finishes are guaranteed to resist water spots and mineral buildup and easily wipe clean without chemicals or cleaners
Special Information
California Prop 65 WARNING
CALIFORNIA PROP 65 WARNING
This product can expose you to Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm.
For more information go to http://www.P65Warnings.ca.gov
Documents & Specs
Product Support, Repair Parts & Technical Specifications
Installation Information

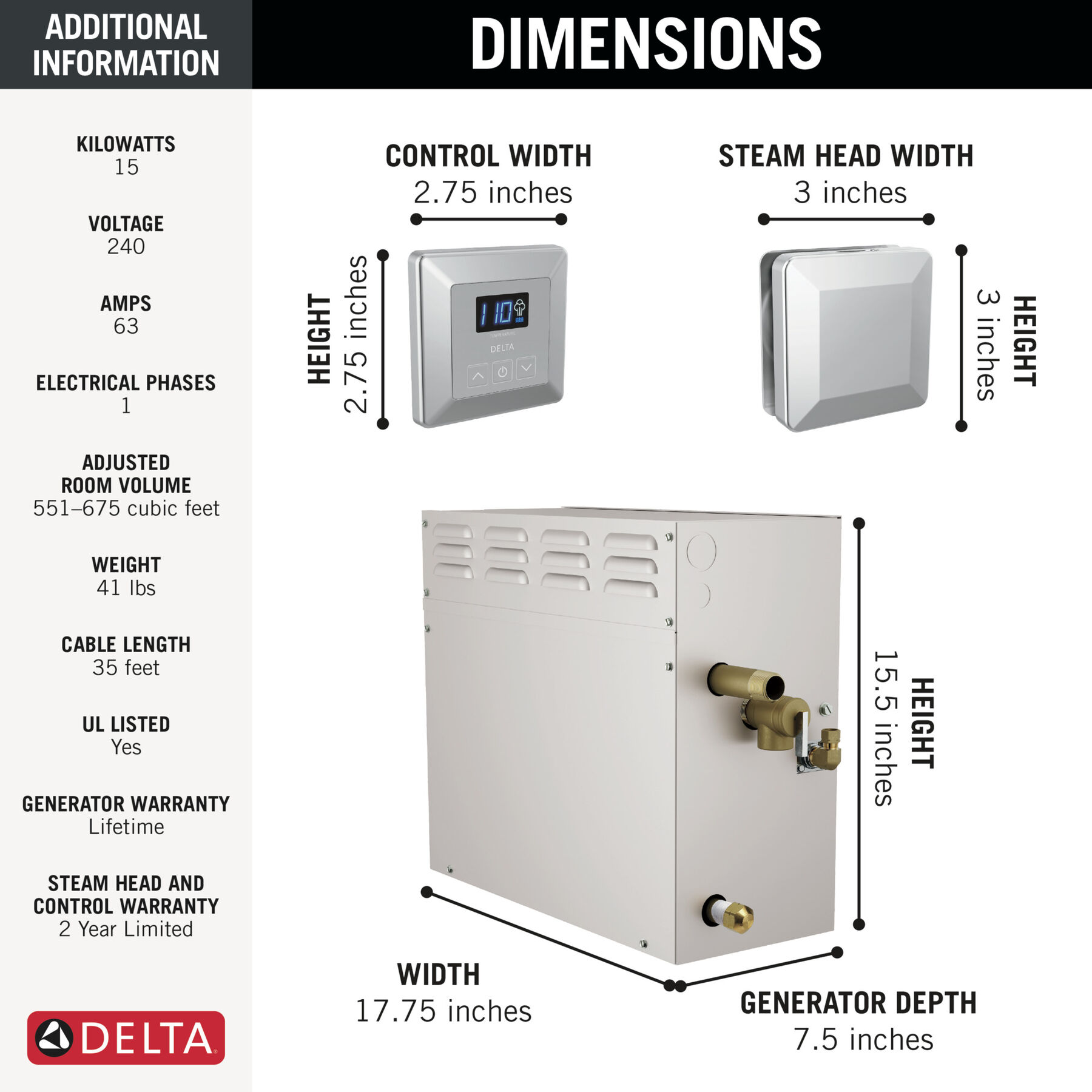

Max Shower Volume :
650
Control Unit Included :
Yes
Generator Included :
Yes
Steam Head Included :
Yes
Silicon Cover Included :
Yes
Electrical Phases :
1
Breaker Capacity :
80
Frequency :
60
Voltage :
240
Wattage :
15000
Number Of Steam Heads :
1
Control Unit Height :
3-3/4
Control Unit Depth :
5/8
Steam Head Height :
3-3/16
Steam Head Width :
3-3/16
Steam Head Depth :
1-1/4
Generator Height :
15-1/2
Generator Depth :
17-3/4
Kilowatts :
15kw
Overall Height (in.) :
21-7/16
Valve Type:
NA
INSTALLATION SUPPORT
Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.
Need help with installation? Mike & Hannah are here to help! Get advice from the pros on everything from installation to product care.
REVIEWS
Rated 5 out of
5
by
__britt__c_6076 from
So peaceful!
This shower steamer is AMAZING! I love turning it on before taking a shower and the bathroom getting so warm and relaxing. It wasn’t too difficult to install either. I would say check this out if you want to make your bathroom more relaxing!!
Date published: 2025-06-07
Rated 5 out of
5
by
nicoler819_4584 from
Stem shower
Compact. Currently renovating the shower to make it compatible with h to us stem generator. Very excited to use. Looks straightforward for installation. Make sure the watts are compatible for the size of your shower.
Date published: 2025-05-16
Rated 5 out of
5
by
aschoenrock_5015 from
One heck of a steam machine!
This is an amazing steam generator! It wasn't exactly easy to install, so it's definitely not a DIY kind of project, but it sure makes a great addition to the house!
Date published: 2025-04-24
Rated 5 out of
5
by
veronicad7_1360 from
Easy to install
The Detal SimpleSteam Kit is sleek in design and easily fits under a sink or in a cabinet. Having the steam kit installed required basic plumbing skills.
Date published: 2025-04-12
Rated 5 out of
5
by
lorim167_6191 from
Easy to install! Great Spa Addition to your Shower
Easy installation and a game changer for our bathrooms! We ended up purchasing another one! Any size bathroom works! Great quality and excellent customer service if you have any questions. Very durable and turns your bathroom into a spa!
Date published: 2025-04-11
Rated 5 out of
5
by
essj_jalisco_sj_7803 from
Delta steam kit
I would love to say that this is amazing really recomend come good packing everything packed good came super fast and it a good quality the best one for me
Date published: 2025-04-10
Rated 5 out of
5
by
amandah798_4954 from
Steamy
I am loving The Delra simple steam kit 15kw in lumicoat chrome. It's steams great wasnt that hard or take to long to put in. I would recommend this product.
Date published: 2025-04-10
Rated 5 out of
5
by
angelm220_5777 from
Amazing but a little work to install
Luckily we are in the process of remodeling our bathroom, otherwise it would have been a lot more work to install. He have an older house, so this was a great way to upgrade our bathroom and make it feel like a spa. I love the essential oil reserve, after a stressful day it is an amazing way to unwind. We have hard water, so I am curious to see how it holds up over time.
Date published: 2025-04-01
Q&A
what is the maximum steam temperature I can get? dial shows106 but set to 124
Hi T Clark,
The control's maximum set point is 125°F. The maximum temperature the steam room can reach will vary depending on how the steam was constructed and sized.
Date published: 2024-11-06
Where is the care and maintenance information? Wondering if it has to be flushed out like a Thermasol unit does.
This product is maintenance free in a residential application.
Date published: 2025-03-26
How do you wire the cat wire? I need the color combo.
Hi Cletus,
The control communication cable is proprietary and is not a standard CAT Wire. They will need to use the cable that is supplied with the generator.
Date published: 2024-09-20
What is the recommended type of insulation for the pipes running from the generator to the shower?
Fiberglass type wrap.
Date published: 2025-09-05
Does the unit need to be flushed periodically?
For residential application, on regular City Water supply there is no need to flush it, it is maintenance free.
Date published: 2025-07-01
Can I have two steam heads on a 15kw system?
There is only one steam pipe, but sure you may split it into multiple outlets. Only concern is that steam will exit from the closest exit, so if the steam pipe is not split equally, majority of steam will exit from the shortest pipe outlet.
Date published: 2025-07-01
On the 5P-EST10 can the heating element be replaced without replacing the tank too?
Hello Valued Customer,
The Simple Steam 10KW has a sealed tank and element assembly and does not have a removable heating element. To replace the heating elements on this unit would require the whole tank assembly to be replaced.
Thank you,
Delta Steam Team
Date published: 2024-02-14
What’s the power draw on 12kw unit? Do I need 30 or 50 amp circuit?
It draws 50amps on 240Volts and requires a 60amp, double pole breaker.
Date published: 2025-02-11
Can you add a second control panel for the outside of the shower?
Hello Customer!
Thank you for your question and we are happy to help. The Delta 5P-EST15-BL will not work with a second control panel. With any further questions or concerns, please do not hesitate to reach out to us again.
Best Regards,
Carrie
Date published: 2024-07-30
what color should the status lights be on top of the circuit board. I'm unable to get my generator to produce steam even after verifying water supply is not an issue
If there is 240Volts entering the steam generator, a Green light should be lit on the circuit board.
Date published: 2025-02-11
Hello, My customer wants to know the wire size is from the thermostat to the control ? Is that the included cable that is specified?
Hi Jane,
The 5P-EST12-PR does come with the required communication cable for the installation.
Have a great day!
Date published: 2024-01-31
I have a new 72”x42 shower what size unit should I install?
To select the proper model steam generator, we also need to know the Height, Wall Material and if there are any exterior walls/windows.
Date published: 2025-02-20
