SimpleSteam™ Kit
SimpleSteam™ Kit - 6kW in Lumicoat® Chrome
Model#:
5P-EST06-PR
Image Thumbnail, click to view zoomed product image
null
null
null
null
null
null
null
null
PRODUCT FEATURES
Simple to order and simple to use, the SimpleSteam™ Kit is simple for a reason: so you can enjoy the benefits of at-home steam whenever you want it. Steam can be more than a relaxing escape. Discover how the Delta® Steam Systems can improve your overall wellbeing. Plus, conserve water and energy without compromising your experience—an average 20-minute steam shower uses less than one gallon of water. Enjoy your steam with peace of mind; the SimpleSteam generator is covered by our Lifetime Limited Warranty, and our electronic parts are covered for up to two years.
- Kit includes the SimpleSteam™ Generator, SimpleSteam™ Square Control and Square Steam Head
- Generator available in sizes: 4, 6, 7.5, 10, 12 & 15 kW
- Compact design permits generator installation in a vanity, closet, or insulated attic or basement
- Includes 35' cable (alternative length extension cable sold separately)
- Recommended generator pan and auto drain 5GA-PAD-240 available for purchase separately
- Stainless steel tank
- Generator is UL Listed with Limited Lifetime Warranty
- Control turns system off and on and adjusts temperature
- Control must be installed inside the shower area
- Steam Head 3/4" NPT, includes silicone cover
- Essential oil reserve on top of steam head
- Lumicoat® Finishes are guaranteed to resist water spots and mineral buildup and easily wipe clean without chemicals or cleaners
Special Information
California Prop 65 WARNING
CALIFORNIA PROP 65 WARNING
This product can expose you to Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm.
For more information go to http://www.P65Warnings.ca.gov
Documents & Specs
Product Support, Repair Parts & Technical Specifications
Installation Information
Max Shower Volume :
150
Control Unit Included :
Yes
Generator Included :
Yes
Steam Head Included :
Yes
Silicon Cover Included :
Yes
Electrical Phases :
1
Breaker Capacity :
30
Frequency :
60
Voltage :
240
Wattage :
6000
Number Of Steam Heads :
1

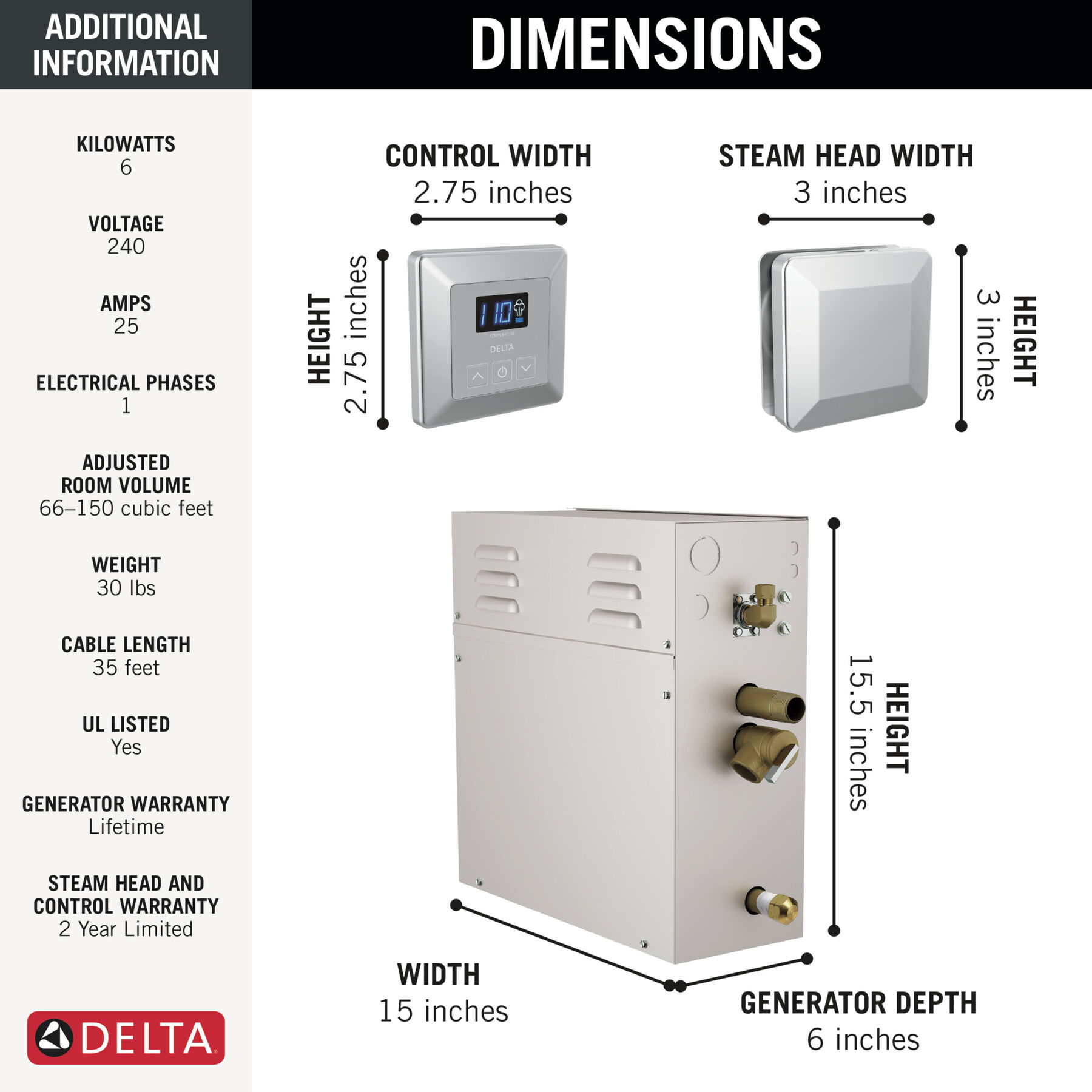

Control Unit Height :
3-3/4
Control Unit Depth :
5/8
Steam Head Height :
3
Steam Head Width :
3
Steam Head Depth :
1
Generator Height :
15-1/2
Generator Depth :
15
Kilowatts :
6kw
Overall Height (in.) :
21-7/16
Valve Type:
NA
INSTALLATION SUPPORT
Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.
Need help with installation? Mike & Hannah are here to help! Get advice from the pros on everything from installation to product care.
REVIEWS
Rated 5 out of
5
by
__britt__c_6076 from
So peaceful!
This shower steamer is AMAZING! I love turning it on before taking a shower and the bathroom getting so warm and relaxing. It wasn’t too difficult to install either. I would say check this out if you want to make your bathroom more relaxing!!
Date published: 2025-06-07
Rated 5 out of
5
by
nicoler819_4584 from
Stem shower
Compact. Currently renovating the shower to make it compatible with h to us stem generator. Very excited to use. Looks straightforward for installation. Make sure the watts are compatible for the size of your shower.
Date published: 2025-05-16
Rated 5 out of
5
by
aschoenrock_5015 from
One heck of a steam machine!
This is an amazing steam generator! It wasn't exactly easy to install, so it's definitely not a DIY kind of project, but it sure makes a great addition to the house!
Date published: 2025-04-24
Rated 5 out of
5
by
veronicad7_1360 from
Easy to install
The Detal SimpleSteam Kit is sleek in design and easily fits under a sink or in a cabinet. Having the steam kit installed required basic plumbing skills.
Date published: 2025-04-12
Rated 5 out of
5
by
lorim167_6191 from
Easy to install! Great Spa Addition to your Shower
Easy installation and a game changer for our bathrooms! We ended up purchasing another one! Any size bathroom works! Great quality and excellent customer service if you have any questions. Very durable and turns your bathroom into a spa!
Date published: 2025-04-11
Rated 5 out of
5
by
essj_jalisco_sj_7803 from
Delta steam kit
I would love to say that this is amazing really recomend come good packing everything packed good came super fast and it a good quality the best one for me
Date published: 2025-04-10
Rated 5 out of
5
by
amandah798_4954 from
Steamy
I am loving The Delra simple steam kit 15kw in lumicoat chrome. It's steams great wasnt that hard or take to long to put in. I would recommend this product.
Date published: 2025-04-10
Rated 5 out of
5
by
angelm220_5777 from
Amazing but a little work to install
Luckily we are in the process of remodeling our bathroom, otherwise it would have been a lot more work to install. He have an older house, so this was a great way to upgrade our bathroom and make it feel like a spa. I love the essential oil reserve, after a stressful day it is an amazing way to unwind. We have hard water, so I am curious to see how it holds up over time.
Date published: 2025-04-01
Q&A
can I install simple steam kit above the shower ceiling?
Hello!
Yes, it can be installed above the shower ceiling.
Please reach out with further questions!
Best Regards,
Tim
Digital Communications Specialist
Date published: 2025-09-18
Can i use a condensate pump for the drain water? Since its not boiling hot anymore i would think it would be fine.
It depends on the temperature rating of the pump you are using and if an optional AutoDrain is installed. If there is an optional AutoDrain installed, then the water temp when draining will be under 130ºF.
Date published: 2025-02-10
Hello, I recently purchased and installed Simple steam 6kw system to replace a similar steamier unit. It gets the shower hot but there really is not much actual steam. The steam outlet drips water where my last unit did not. How can I get more steam?
Same issue here. How long should I expect the break in period to take?
Date published: 2025-05-19
Does it have a self-cleaning feature? How do I keep the generator from getting clogged up with water deposits?
We offer an optional AutoDrain, which may be purchased separately. Product# 5GA-ADD-240
Date published: 2025-02-11
Venting requirements? Install vent INSIDE the Steam Shower or OUTSIDE? Any special requirements for either method of venting?
Hello Valued Customer,
The vent must be installed outside the steam shower. Using a vent in the steam shower will cause the steam to escape the room and the room will never fully heat up.
Date published: 2024-09-05
Can I use the gold round Control from the other units for the simple steam?
Hello,
You can only use the control that comes with the Simple Steam Kit. The other controls will not work and could damage the system. Upgrade to the Delta Steam Scape or Brizo Mystix generators if you want the round and gold control.
Date published: 2024-09-24
Where does the auto drain drain too?
Into Indirect Waste.
Date published: 2025-07-01
SimpleSteam Kit 10kW. The plumber wants to install it under wife's vanity punch a hole thru the wall run the steam pipe up the wall into & across the attic into the MB down the MB wall & into the MB. Toal pipe ft = 40 with 4 right angles. Will this work?
Hi Batman0015,
This is acceptable.
Date published: 2024-09-11
Special Information
California Prop 65 WARNING
CALIFORNIA PROP 65 WARNING
This product can expose you to Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm.
For more information go to http://www.P65Warnings.ca.gov
Not sure what you need?
Use our Steam Shower Configurator tool. Follow the step-by-step guided experience to determine the exact products you’ll need to create your ideal Steam Shower space. This tool will help you:
