SteamScape™ Classic System
Round Steam Package in Lumicoat® Chrome
Model#:
5CH-250R-PR
Image Thumbnail, click to view zoomed product image
null
PRODUCT FEATURES
With the Delta® SteamScape™ Classic System, you can relax knowing you have a steam experience tailored to fit your needs. Featuring two user presets, a wide selection of finishes, and a steadier, more enjoyable steam environment, the SteamScape™ Classic System is here to maximize your calm. Discover how the Delta® Steam Systems can improve your overall wellbeing. Plus, conserve water and energy without compromising your experience—an average 20-minute steam shower uses less than one gallon of water. Enjoy your steam with peace of mind; our SteamScape electronic parts are covered for up to two years.
- Package includes SteamScape™ Round Control and Round Steam Head
- Programmable for two user presets to control temperature and duration
- Patented Dual Sensor Technology: The control features dual temperature sensors that deliver extremely accurate temperature precision to smoothly regulate the steam shower environment
- MUST ORDER GENERATOR SEPARATELY
- Control must be installed inside the steam shower area
- Steam Head 3/4" NPT, includes silicone cover
- Essential oil reserve on top of steam head
- Lumicoat® Finishes are guaranteed to resist water spots and mineral buildup and easily wipe clean without chemicals or cleaners
Documents & Specs
Product Support, Repair Parts & Technical Specifications
Installation Information
Control Unit Included :
Yes
Steam Head Included :
Yes
Silicon Cover Included :
Yes
Number Of Steam Heads :
1

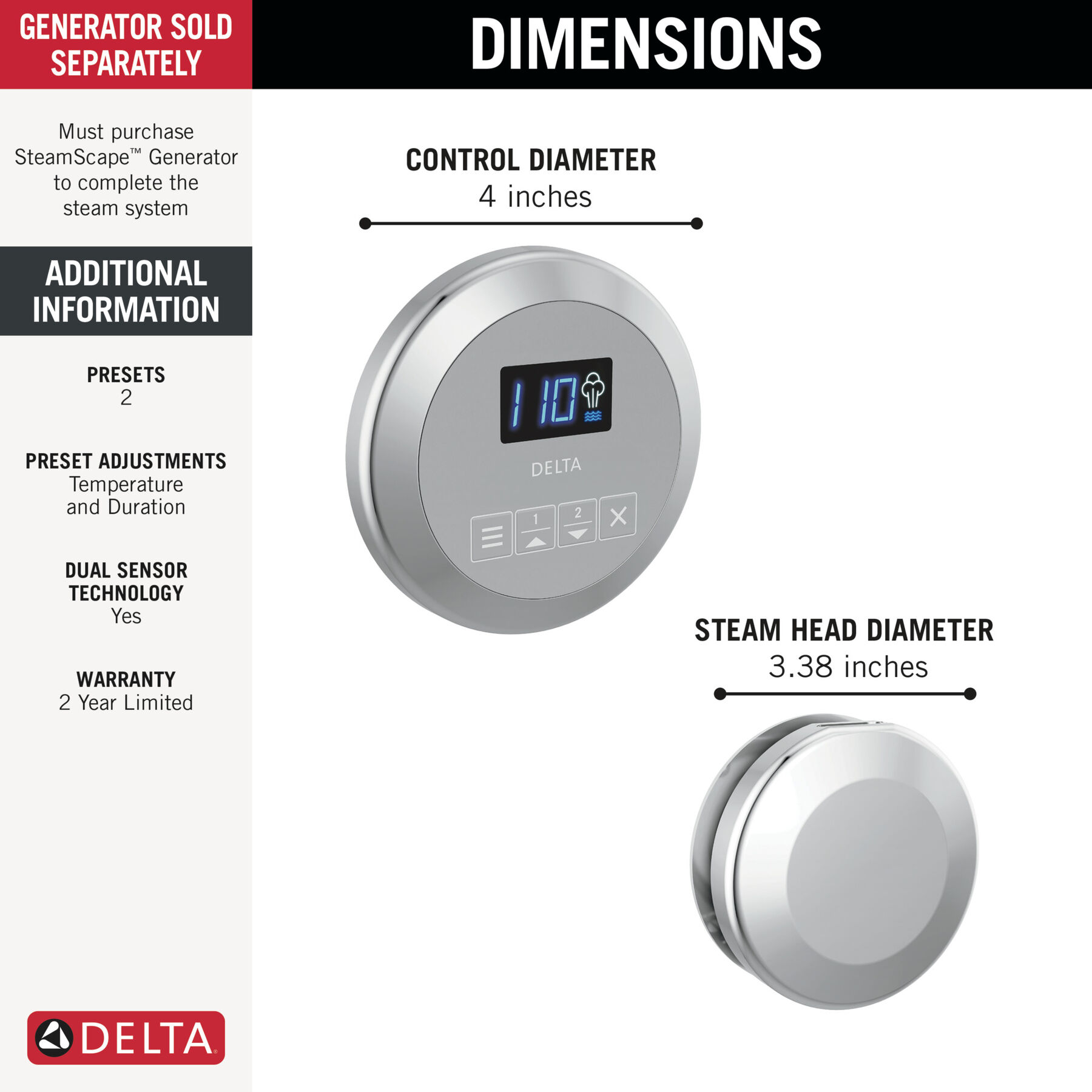

Control Unit Height :
4
Control Unit Depth :
5/8
Steam Head Height :
3-3/16
Steam Head Width :
3-3/16
Steam Head Depth :
1
Overall Height (in.) :
7-3/16
Valve Type:
NA
INSTALLATION SUPPORT
Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.
Need help with installation? Mike & Hannah are here to help! Get advice from the pros on everything from installation to product care.
REVIEWS
Q&A
The control has and on and off setting but its not needed to start the steam cycle.It's not coverd in the instruction sheet. What is the purpose for this function. When I had it on the steam line was hot so I'm guessing it keeps the unit pre heated.
Hi Dplbg,
If you have a Brizo Mystix steam generator, the ON off Feature under settings is for the RapidMist Feature. The Delta Branded Products do not have this feature and that is why it was not covered in the manual.
Date published: 2024-05-16
How to operate this controller
The operation is covered in the owners manual, which is supplied and may also be downloaded from the Delta website. In a recap, before using the control, press the Menu button on the left, adjust the default time (~30min) then allow 5 seconds for the control to save this info and screen go out. To use it press user 1 button, it will display the max set temp (which you may adjust by pressing the up/down arrows), once done setting, the control display will show you the ambient room temp (~70 degrees F), allow it the system to boil the water for 3-5 min, then steam should start to come out of the steam outlet.
Date published: 2025-03-21
Not sure what you need?
Use our Steam Shower Configurator tool. Follow the step-by-step guided experience to determine the exact products you’ll need to create your ideal Steam Shower space. This tool will help you:
- Determine the correct generator for your shower size
- Select accessories to enhance your shower space
- Get a list of the exact products you’ll need
