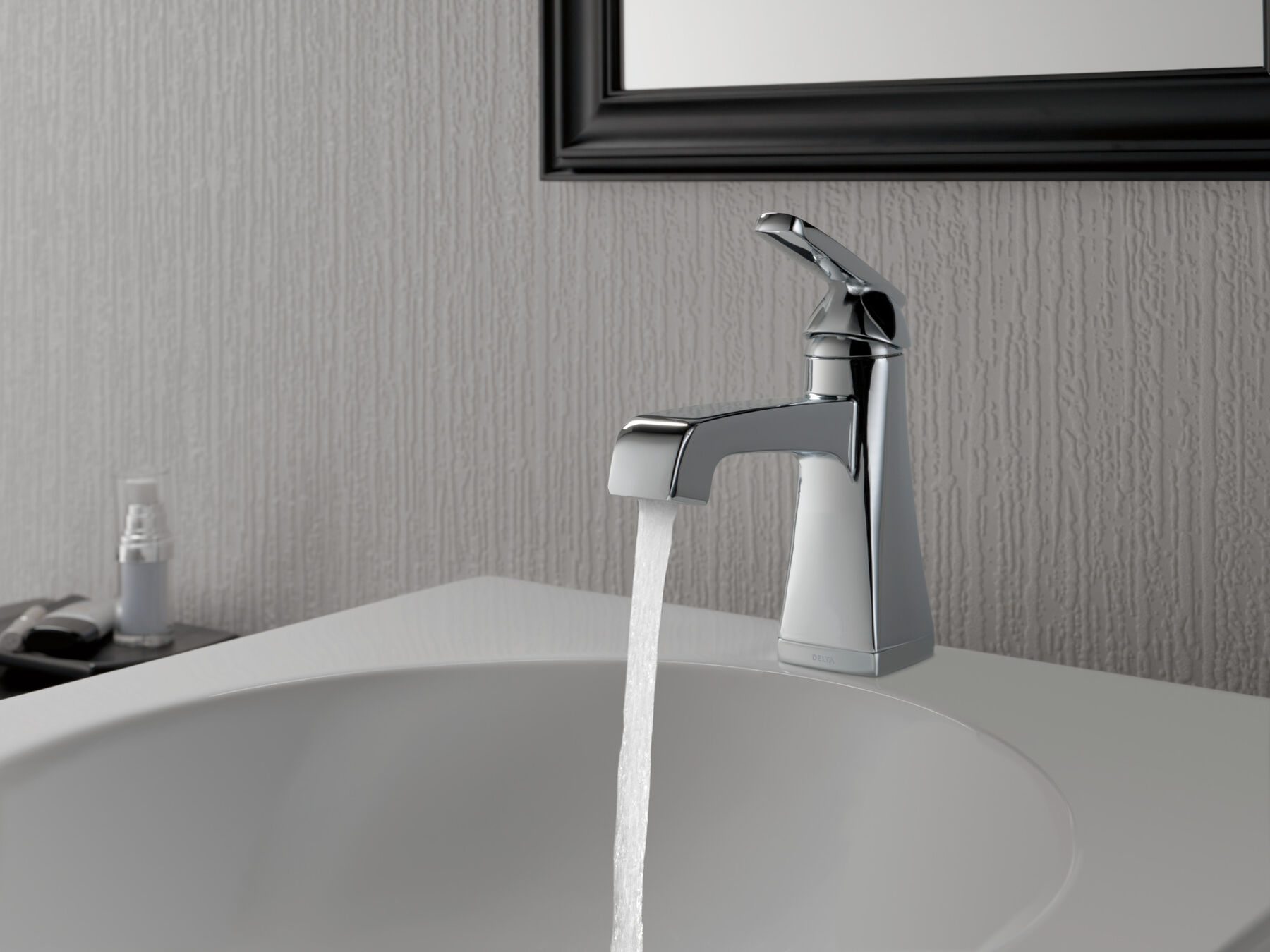

Single Handle Bathroom Faucet in Chrome
Model#:
564-MPU-DST
Image Thumbnail, click to view zoomed product image
null
null
null
null
null
null
null
null
null
PRODUCT FEATURES
With sleek, angular lines and soft edges, the Ashlyn® Bath Collection creates a modern appeal at an attractive price. Delta® faucets with DIAMOND Seal® Technology perform like new for life with a patented design that reduces leak points, is less hassle to install and lasts twice as long as the industry standard. Delta WaterSense® labeled faucets use at least 20% less water than the industry standard — helping you save water without compromising performance. You can install with confidence, knowing that Delta faucets are backed by our Lifetime Limited Warranty.
- DIAMOND Seal® Technology is less hassle to install and helps your faucet perform like new for life, reducing leak points and lasting twice as long as the industry standard
- Everything you need is together in one convenient box, including integrated InnoFlex® PEX supply lines
- Fits 1 or 3-hole 4-inch installations (with included 6-inch deck plate)
- Optional red/blue temperature indicator ring included
- Metal push pop-up drain assembly in matching finish (included) is ADA compliant and simple to install, operate and clean
- ADA Compliant
- WaterSense® labeled faucet uses at least 20% less water than the industry standard without compromising performance
- Rigid spout does not swivel
- Backed by Delta Faucet's Lifetime Limited Warranty
Eco-Friendly
WaterSense® Labeled
Technology and Special Features
ADA Compliant
ADA Compliant
Some people, and some local codes, require fixtures that are compliant with the Americans with Disabilities Act. If someone may visit who has special needs, or if you believe future buyers might appreciate this feature, Delta offers a range of compliant fixtures.
No-Lead Compliant
No-Lead Compliant
Tested and certified to NSF/ANSI Standard 61, which sets the criteria for product safety. The lined waterways in Delta® faucets help prevent leaching of metals.
Water-Efficient
Water-Efficient
CalgreenCert Tooltip information here...
Diamond Seal® Technology
Diamond Seal® Technology
DIAMOND™ Seal Technology is Delta’s revolutionary new water delivery system. An internal contact surface made up of tiny diamonds makes the valve leak-free and extraordinarily durable. It also keeps water free of contact with potential metal contaminants.

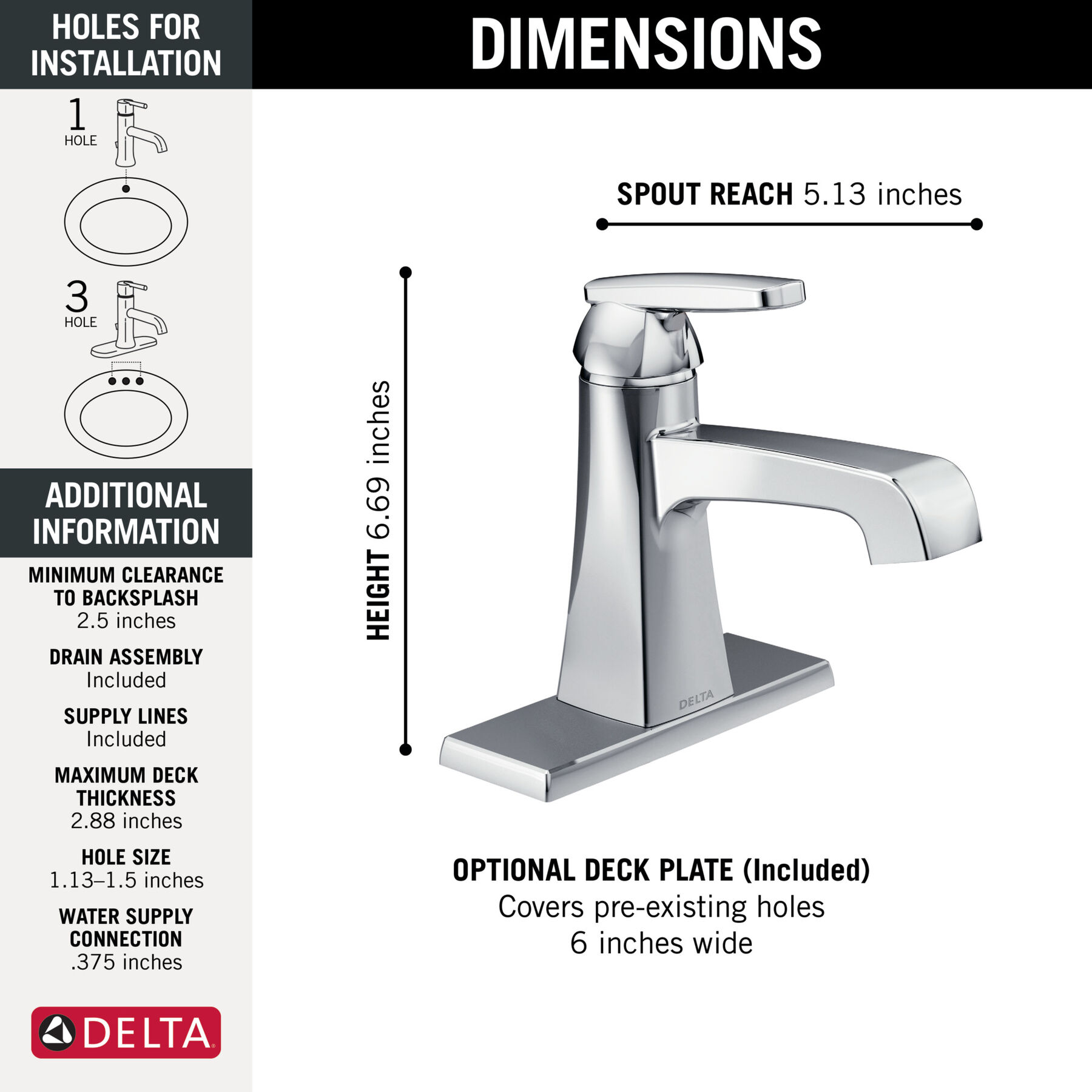

Documents & Specs
Product Support, Repair Parts & Technical Specifications
Resources
Installation Information
1 or 3-hole 4" installation
Connection Type :
3/8" compression fittings
Flow Rate :
1.2 gpm @ 60 psi, 4.5 L/min @ 414 kPa
Overall Height (in.) :
6-11/16
Valve Type:
Ceramic Disc
INSTALLATION SUPPORT
Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.
Need help with installation? Mike & Hannah are here to help! Get advice from the pros on everything from installation to product care.
PART LIST
PART LIST
View Product
![Image-RP40650]()
Michael Graves™
Michael Graves™ Set Screw
List Price:
$6.60
Online Price:
$5.28
Free Ground Shipping All Orders $49+
RP40650
5.00
3
View Product
![Image-Master-RP26533]()
Delta®
Delta® Metal Drain Assembly - Less Lift Rod - Bathroom
List Price:
$88.55
-
$186.00
Free Ground Shipping All Orders $49+
RP26533
View Product
![Image-RP63265]()
Delta®
Delta® Adapter - Slip Joint
List Price:
$53.95
Online Price:
$43.16
Free Ground Shipping All Orders $49+
RP63265
View Product
![Image-RP63264]()
Delta®
Delta® Adapter Kit - PEX Compression (10)
List Price:
$85.60
Online Price:
$68.48
Free Ground Shipping All Orders $49+
RP63264
View Product
![Image-RP63263]()
Delta®
Delta® Adapter Kit - PEX Compression (4)
List Price:
$41.80
Online Price:
$33.44
Free Ground Shipping All Orders $49+
RP63263
3.67
3
View Product
![Image-RP47029]()
Leland®
Leland® Mounting Bracket - 1H Bathroom
List Price:
$16.65
Online Price:
$13.32
Free Ground Shipping All Orders $49+
RP47029
5.00
2
View Product
![Image-RP12517]()
Delta®
Delta® Horizontal Rod
List Price:
$20.75
Online Price:
$16.60
Free Ground Shipping All Orders $49+
RP12517
2.80
5
View Product
![Image-RP47030]()
Leland®
Leland® Bathroom Wrench
List Price:
$9.20
Online Price:
$7.36
Free Ground Shipping All Orders $49+
RP47030
1.00
2
View Product
![Image-RP12516]()
Delta®
Delta® Strap w/ Screw
List Price:
$17.00
Online Price:
$13.60
Free Ground Shipping All Orders $49+
RP12516
View Product
![Image-RP52217]()
Delta®
Delta® Aerator Removal Wrench
List Price:
$23.50
Online Price:
$18.80
Free Ground Shipping All Orders $49+
RP52217
3.60
10
View Product
![Image-RP71111]()
Delta®
Delta® Aerator - Water-Efficient & Wrench - 0.5 GPM
List Price:
$49.40
Online Price:
$39.52
Free Ground Shipping All Orders $49+
RP71111
View Product
![Image-RP6142]()
Delta®
Delta® Gasket
List Price:
$11.40
Online Price:
$9.12
Free Ground Shipping All Orders $49+
RP6142
2.00
1
View Product
![Image-RP54977]()
Lahara®
Lahara® Aerator - Water-Efficient w/ Wrench - 1.5 GPM
List Price:
$19.60
Online Price:
$15.68
Free Ground Shipping All Orders $49+
RP54977
3.67
9
View Product
![Image-RP72730]()
Classic
Classic Aerator - Water-Efficient - 1.0 GPM
List Price:
$25.60
Online Price:
$20.48
Free Ground Shipping All Orders $49+
RP72730
1.00
2
View Product
![Image-RP6140]()
Delta®
Delta® Nut & Washer - Drain Assembly
List Price:
$23.05
Online Price:
$18.44
Free Ground Shipping All Orders $49+
RP6140
View Product
![Image-Master-RP77265]()
Ashlyn®
Ashlyn® Lift Rod & Finial - 1H Bathroom
List Price:
$31.35
-
$49.00
Free Ground Shipping All Orders $49+
RP77265
REVIEWS
Rated 5 out of
5
by
Michael from
Very Happy !
Quality fixture ; excellent components , design , finish , and easy to install. Pricey but you get what you pay for !
Date published: 2025-08-30
Rated 5 out of
5
by
Rickydee from
Delta quality!
Very nice fixture. High quality
Date published: 2025-06-25
Rated 5 out of
5
by
Jordan from
Expensive but worth it!
Straightforward installation
Looks beautiful
Date published: 2024-10-22
Rated 5 out of
5
by
Jules from
Nice finish
It’s really nice, just what I was looking for! Takes up less space than my previous faucet!
Date published: 2024-09-05
Rated 5 out of
5
by
Maude from
Another winner!
I bought this faucet for my bathroom sink to match my Delta shower. I love it! Looks great with my new sink.
Date published: 2024-08-05
Rated 5 out of
5
by
Magster from
Delta Single Hole Bathroom Faucet
This is a well-made faucet and the style fits well with my decor
Date published: 2024-07-28
Rated 1 out of
5
by
Daniel from
Pop up drain leaks
I have spent 2 hours trying to stop pop-up drain from leaking. I have siliconed the drain, lowered into sink, placed rubber gasket on, and tightened the collar wing nut as tight as possible twice now. The drain still leaks. This is an awful design!
Date published: 2024-03-16
Rated 5 out of
5
by
Rb Coast from
Simple and efficient
I bought two of these in different finishes for our two bathroom makeovers. We love the fact that they are one hole design. Gives more vanity countertop workspace and very easy to keep clean. I was worried about the California compliance aspect of them. I thought they might not have decent water pressure. The pressure is fine as they restrict flow by using a fairly narrow connection hose rather than a diffuser screen. So far so good.
Date published: 2024-03-07
Q&A
My Ashlyn faucet is about16 months old and it is leaking from the handle. I’ve read to lift straight up to remove it but I’m unable to get it off. Would you please provide more detailed instructions. Thank you.
Hello,
Please accept our sincere apology for the inconvenience you are experiencing. We have reached out to you via email to further assist at this time.
Best Regards,
Tim
Digital Communications Specialist
Date published: 2025-01-08
CAN YOU TAKE OFF AERATOR TO CLEAN
Thank you for your question, Debbie. The aerator can be removed using the included aerator wrench tool. Please refer to page 8 of the Installation Instructions linked below.
https://media.deltafaucet.com/MandI/77253%20Rev%20D.pdf
Best regards, Jon
Date published: 2024-03-28
Does the lever have a small turn radius?
We recently received this faucet and noticed the lever has a very small turn radius. It seems it would be very difficult to control the temperature with such a small radius. Is this by design and is the lever sensitive to small adjustments?
Yes and it takes some getting used to.
Date published: 2024-03-28
Is the 564-MPU-DST stainless valve purchased from Home Depot or any other box store, the same as a valve with the same part number purchased from a specialty plumbing store? I have been told that the quality of the valve is different. Maybe just the cost.
Hi, Handy Man!
Thank you for your question. We appreciate your interest in Delta faucets. All Delta faucets feature the same quality parts, materials, and workmanship, no matter what kind of dealer sells them. Delta retail dealers usually sell faucets that include the handles in the boxes. Plumbing professionals and Delta Studio Showrooms sell faucets where the faucets and handles are packaged and sold separately ("LHP" models), giving the customer some additional styling choices. However, the quality of all Delta faucets is the same.
Best Regards,
Rosanna
Date published: 2024-03-28
What is the flow rate? I've seen it listed as 1.5 gpm and 1.2 gpm. Is there a removable flow restrictor?
Hi, Humarock!
Thank you for your question. The Delta 564-MPU-DST Faucet has a flow rate of
1.20 gpm @ 60 psi.
Best Regards, Rosanna
Date published: 2024-03-28
There is an issue concerning the Ashlynn single handle faucet drain stop lever position so much at stake to have this issue confronted soon. I reall
I really had my mind made up and wish could still buy the Ashlynn single handle lav faucet Told by marble installer specialist that the pull out angle type of drain stop lever will not have enough space from tile of back wall. We will have 20 inch deep vanity counter and undermount sink and 13/16 thick marble splash. What to do. He said many people have same issues. Only can use top drain stop handle or pull handle that goes straight up. ASAP. Ths
Hi Honorine,
Thank you for your question. The faucet requires a 1 1/4" minimum clearance to the backsplash. It may help to use a flexible lift rod such as the RP75526 in your installation.
http://www.deltafaucet.com/repairparts/details/rp75526.html
Alternatively, you can install a push pop-up assembly and cap the lift rod hole on the back of the spout with the included button.
http://www.deltafaucet.com/search/results.html?q=push+pop+Chrome&num=20
Best regards,
Jon
Date published: 2024-03-28
Does the Ashlyn line have an "all brass body" or does it have plastic or nylon components? If so which of your products have an all brass body?
Hello V12345,
Thank you for your question. The Delta Ashlyn Lavatory 564-MPU-DST faucet uses either metal and plastic combination or a proprietary mixture of components so that the product has a high quality, while maintaining safety control with the various temperatures of water that go through the product. For safety reason we do not manufacture an "All Brass" faucet.
Delta Faucet Company takes extreme pride in the quality of its products, and strives daily to meet and exceed the expectations of our customers.
Best regards,
Tanya
Date published: 2024-04-01
What is the finish on the 564SSMPUDST? Is it "brushed" or "brilliant"
Can't tell from the brochure if this faucet has a "brushed" or "brilliant" stainless steel finish. Please advise.
Hello Robert, Thank you for your question.
The 564-SSMPU-DST single handle lavatory faucet is in the Brilliance Stainless Steel finish.
Best regards,
Brandis
Date published: 2016-09-06
